24V 16.7MA dc 12A one pole relay

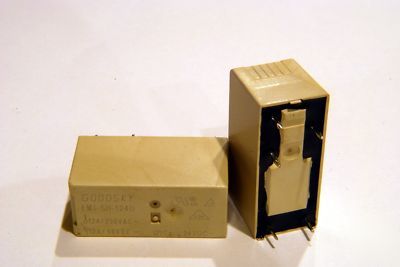

Up for sale 1 pcs. of brand new, 24V, 16.7mA, DC coil, 12A Relay, Producer: Good Sky Electric Co., Ltd.,EMI_SH_124D .
1. Relays are designed for switching capacity by 12A to comply with industrial control system use.
2. Slim type and low profile (29.0 x 12.6 x 15.6) mm. is developed to provide end users with more flexibility in PC Board design.
4. Proper insulation distance will has a 5000VAC dielectric strength between contact and coil.
5. Complete protective construction from dust and soldering flux is designed.
Cooking appliance, audio equipment, domestic appliance and controlling equipment, etc.
Nominal Voltage (VDC): 24.00V
Coil Resistance (ohms) (+/- 10%): 1,440ohms
Power Consumption (W): 0.40W
Nominal Current (mA) (+/- 10%): 16.70mA
Pull In Voltage (VDC): 19.20V
Drop Out Voltage (VDC): 1.20V
Max. Allowable Voltage (VDC): 31.20V
Contact Resistance: 100 m Max. @1A,6VDC
Dielectric Strength - between coil & contact: 5,000VAC at 50/60 Hz for one minute.
Dielectric Strength - between contact: 1,000VAC at 50/60 Hz for one minute.
Insulation Resistance: 100M Min. at 500VDC
Operating Ambient Temperature: -40oC ~ +85oC
Vibration Resistance: 10G (10~55Hz) (Dual amplitude:1.5mm)
Shock Endurance: 1,000 m/S2 Min.
Shock Error Operation: 100 m/S2 Min.
Life Expectancy Mechanically: 10@7 Operations at No load condition.
Life Expectancy Electrically: 10@5 Operations at Rated Resistive Load.
Rated Carrying Current: 12A at 30VDC, 12A at 250VAC.
Max. Allowable Voltage: AC 250V, DC 110V.
Max. Current (continual): 0.5A
1-4 Coil, 2-5 Normally Closed, 3-5 Normally Open
