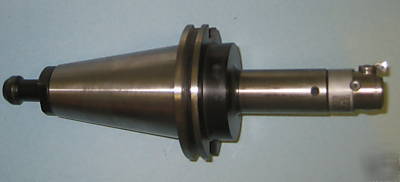

Kaiser boring head - complete with cat 50 toolholder
* 1 Kaiser Boring Head: 310.305, with Insert Holder
* Boring Range: 32mm (1.259") - 42mm (1.653")
* 1 Kaiser Cat 50 Tool Holder Part # 11.326.632
Contact me for special pricing on multiple items
PRECISION BORING HEADS SERIES 310
Kaiser 310 boring heads are designed for precision production boring on machining centers, boring mills, transfer
machines and high speed milling machines. Their fully enclosed, compact and rugged design allows reliable operation,
even under extreme cutting conditions.

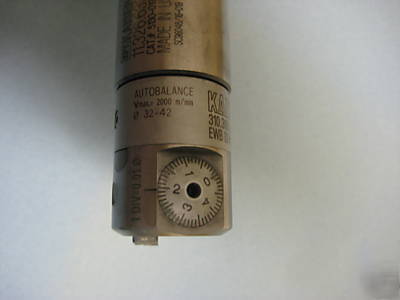

The Kaiser 310 heads feature highly accurate and smooth micrometer adjustment precision. Head is available
with metric graduations which are easily read from a large dial. Metric heads offer .010mm/ dial
divisions with Vernier markings of.002mm/ . All tool carrier movement is strictly radial, making length corrections required
on angular mounted boring cartridges unnecessary.
The unique locking system prevents any diameter shift under locking action forces and maintains diameter under all cutting
conditions, assuring of the highest repeatability. An additional feature is the simultaneous locking of the adjusting dial,
preventing accidental adjustments.
All insert holders are designed for use with positive rake indexable inserts.
Self-centering, center-clamping screws are used, eliminating top clamps
which obstruct efficient chip evacuation.
Through spindle coolant capability is standard on all 310 heads.
