Awea VP2012 cnc double column vertical machining center

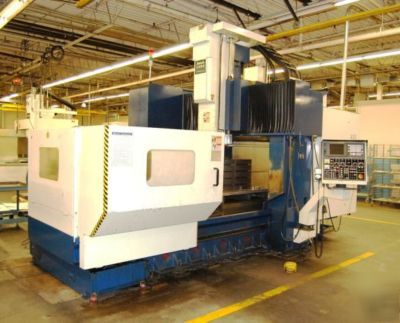

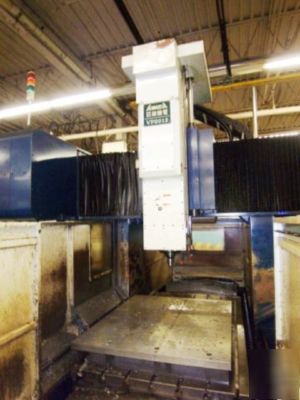

#1469 Awea VP2012 CNC Double Column Vertical Machining Center
X-Axis Travel:............................... 78.7
Y-Axis Travel:...............................47.2
Z-Axis Travel:..............................30
Distance Between Columns:.............................51.5
Height Under Bridge:....................................93.5
Table Size:...........................................78.7 x 43
Table Load Capacity:.....................................9,745 lbs
Spindle Nose to Table:......................................7.8 37.8
Spindle Center to Column:.....................................51.2
Spindle Speed, Max RPM:...............................5000 RPM
Spindle Drive Motor: .................................30 HP / 20HP
Spindle Taper:....................................Cat 50
Tool Charger:.................................30 ATC
Rapid Traverse, X, Y, Axis:..................................787 IPM
Rapid Traverse Z-Axis:.......................................590 IPM
Cutting Feed X,Y,Z Axis:................................315 IPM
Max. Tool Size:...................................... 6 x 13.8
Max. Tool Weight:..........................................33 lbs
Tool Change Time:...................................6 Seconds
Machine Dimensions L/W/H:.......................220 x 130 x 140
Approx. Weight:....................................35,300 lbs

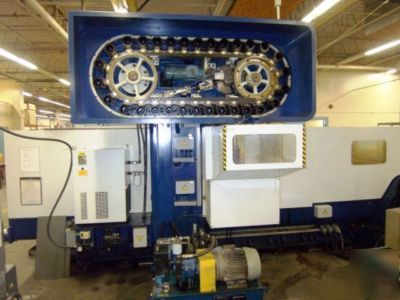

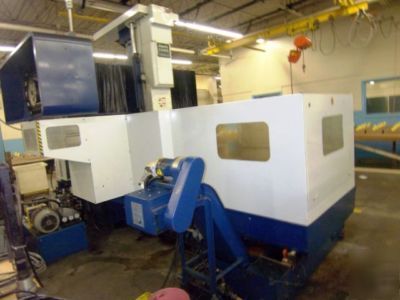

Fanuc 18M CNC Control, 30 Position Automatic Tool Changer, Ram-Type Spindle, Chip Conveyor, Under Power in an East Coast Precision CNC Facility Pre-Removal
Machine Condition:...................Very Good
Machine Location:.........................East Coast Facility
