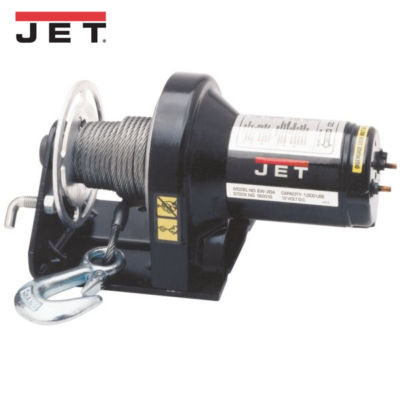

Jet 12V electric winch with 5/32" x 25' cable


Stock Number: 182010 / Model Number: EW-20A
* Designed for mounting in almost any position
* Unit comes complete with 24-foot power harness that connects to the winch switch
* Mounted switch can be operated with remote lanyard
* Power-in and power-out
* Self-locking gearbox
* Dynamic braking action
* Pulley block for double-line operation doubles pulling capacity, extends winch and wire rope life
* 0.5 HP, 1,000-lb. Capacity, 12V Electric Winch
* Motor Horsepower: 0.5 HP
* Motor Voltage: 12 Volt
* Rated Line Pull: 1,000 lbs. (Single Line); 2,000 lbs. (Double Line)
* Stall Load: 1,350 lbs.
* Boat Or Vehicle Capacity: 2,500 lbs.
* Cable Speed: 8 - 22 FPM
* Amps: 92 - 25 (Full-No Load)
* Gear Ratio Cable: [123:1]
* Aircraft Cable Size: 5/32" x 25'
* Overall Dimensions: 11-3/8" x 5-3/8" x 5-3/4" (L x W x H)
