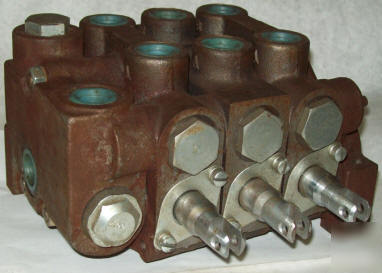

Gresen cs hydraulic directional control valve CS030F
Listing Reference Number: 135-09813
Sectional Directional Control Valve
Code: 6557 Inlet/Outlet w/ Relief
Standard overload relief valve, (WC) 2100 PSI
SAE 10 (7/8-14) Tube Top Inlet Port
SAE 10 (7/8-14) Tube Side Outlet Port
Inlet is open to outlet in neutral position
Code: - Series Circuit, Manually Operated,
with Standard Load Check Assembly
4 Way 3 Position Spring Center, A, B Closed
SAE 10 (7/8-14) Tube Top Working Ports
4 Way 4 Position Float Spool, Spring Center, A, B Closed
Removable Restrictor in "B" Port, 0.125"
Code: 6556 Open Center, Turnaround, No Outlet
Can NOT be used in a closed center system.
