Elk-120 & elk-129 recordable voice module and interface

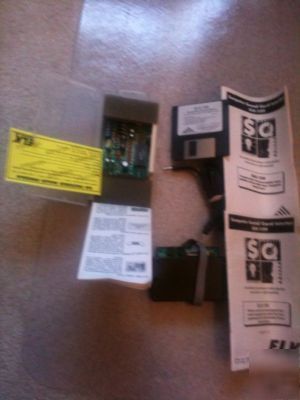

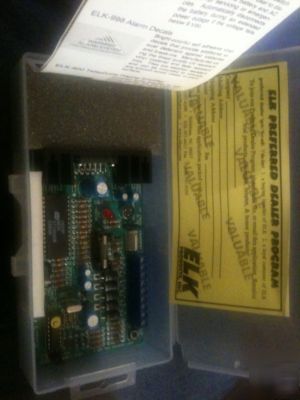

New in Box ELK-120 and New - NOT in Box ELK-129 Audio cable is a similar to the original but from Radio Shack (couldn't find original cable but this looks to be the same). The included floppy disc won't load from my machine but to downlaod the new free ELK-129 Software: Use Waveloader to download sound files (.wavs) to an ELK-120 or ELK-124 Recordable Module thru the ELK-129. Download WaveLoader (Waveloader.exe, self-extracting, 1.3MB, Windows 9x) http:// /downloads/WaveLoader.exe
Multi-Channel Recordable Voice and Siren Driver Module
Listen to examples of the ELK-120
The ELK-120 v.2 features 4 channels that can be configured as 2 channels of siren and 2 channels of voice, or all 4 channels can be used for voice. Either way the voice channels are fully recordable and are stored in non-volatile re-programmable memory. Total time of recording is 8 minutes. The Siren channels offer a choice of: Classic Yelp Sound, Temporal Coded Horn, or Pulsing Industrial Horn.
The siren sounds can be triggered in sequence with the voice channels. The channels can be configured to play once or to repeat endlessly. Two channels support our unique ComboTrigger feature, especially designed for controls that have a single alarm output with a pulsing option for fire or burglary. When pulsed, the Temporal Coded Horn fire signal is sounded. The optional ELK-129 Computer Interface may be used to download .WAV sounds from a PC to the ELK-120. Also available is the ELK-124 offering eight recordable voice channels of 1 minute each.
Four Channels Configurable as: Two Siren and Two Recordable Voice OR Four Recordable Voice.
Maximum record time is 8 minutes divided between the number of voice channels.
Siren Sounds: Classic Yelp Siren, Temporal Coded Horn, and Steady Industrial Horn.
Temporal Coded Horn meets ANSI standard for Audible Emergency Evacuation Signaling.
Recordings stored in non-volatile memory.
Voice channels accept momentary triggers.
"One Shot" or Continuous voice playback settings.
Option to trigger +V1 and or +S3 channels from a steady or pulsing input (ComboTrigger )
Line Level Output Jack for Paging Systems and Amplifiers.
.2 to 2 Amps, (depends on volume setting & speaker load).
120 db @ 1 meter, 14 vdc, with one 8 ohm speaker.
2 min. per channel in voice mode or 4 min. per 2 channels in siren mode.
1/2 to 2 Second Pulse, 50% duty cycle.
3" x 5" x 1.25" (76 x 127 x 32mm).
View the ELK-120 v2 Instruction Manual in Adobe Acrobat format (right-click to save document to your hard drive)
ComboTrigger is a trademark of ELK Products, Inc.
Call your nearest distributor or ELK at 1-(***)-797-9355 for more information
Listen to examples of the ELK-120 in Windows Media (WAV) format
Channel 1 (default message for Burglar) (215 KB)
Channel 2 (default message for Fire) (97 KB)
Channels 1+3 combined (default siren + Burglar message) (405 KB)
Channels 2+4 combined (default temporal coded horn + Fire message) (283 KB)
Channels 3+4 combined (Industrial Horn) (111KB)
Put these cool sounds on your ELK-120 !
Click to listen; right-click to download.
These files are in the Windows Media (WAV) format.
Channel 1 default message (burg)
Channel 2 default message (fire)
