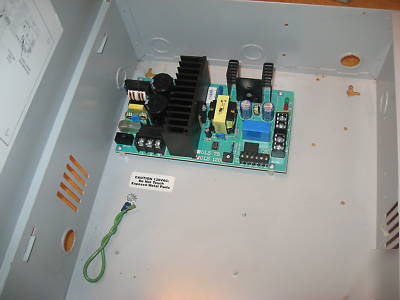

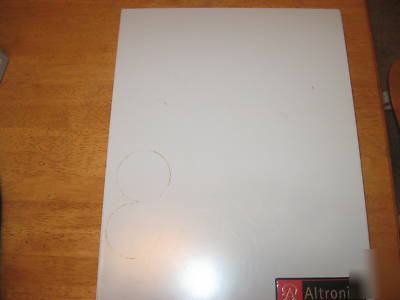

Altronix SMP5PMCTX 12/24VDC supervised power supply
Specs from the Altronix website:
Supervised Power Supply/Charger
Model SMP5PMCTX power supply/charger converts a 115VAC 50/60Hz input, to a 12VDC or 24VDC @ 4 amp of continuous supply current output.
12VDC or 24VDC selectable output.
4 amp of continuous supply current output.
115VAC 50/60Hz, .65 amp input.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Built-in charger for sealed lead acid or gel type battery backup.
Maximum charge current .5 amp.
Zero voltage drop upon transfer to battery backup.
AC input and DC output LED indicators.
AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
Dimensions: 13.5 H x 13 W x 3.25 D.
