*sealed* allen bradley 1747-L552 /c 1747L552 12/09 qty
Rockwell Automation > PLC & HMI > Controllers > SLC 500 > 1747-L552/C
Allen-Bradley 1747-L552 SLC 500 SLC 5/05 Processor, 32K Memory, Ethernet & RS-232 Communication Ports, Series C
1747-L552 SLC 5/05 Processor, User Memory, Max: 32K words total (28K words for data or prog., 4K words for data only); Number of I/O: 4096 in + 4096 out absolute maximum; Local Analog I/O, Max: 480; Program Scan Time/Kword: 0.9 ms (typ); I/O Scan Time: 0.225 ms (typ); No. of Local I/O Chassis, Max: 3; No. of I/O Module Slots in the Local I/O Chassis, Max: 30; Communication Ports : Ethernet & RS-232 (RS-232 port can also be configured for a DH-485 network); Backup Memory: Flash; Battery-backed RAM: Standard.
The Allen-Bradley 1747-L552 5/05 Series C processors support communication speed of 100 Mbps over the Ethernet with Auto-Negotiation, support increased Ethernet connections (48 connections for 1747-L552) and provide HTTP server capability. 1747-L552 SLC 5/05 processors can be configured of up to 4096 inputs plus 4096 outputs and a memory of 32K words. 1747-L552 Processors have all the features of the SLC 5/03 processors, plus a faster communication port and shorter execution times.

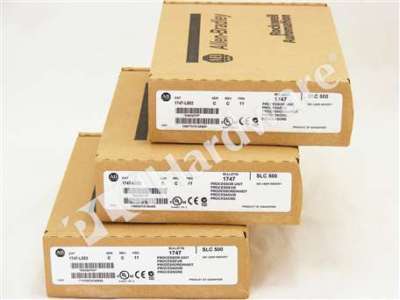

One New Factory Sealed Allen Bradley 1747-L552 Series C, SLC 500 SLC 5/05 CPU Controller, 32K Memory, Ethernet & RS-232 Communication Ports.
