Hp agilent 8510B network analyzer with option 010

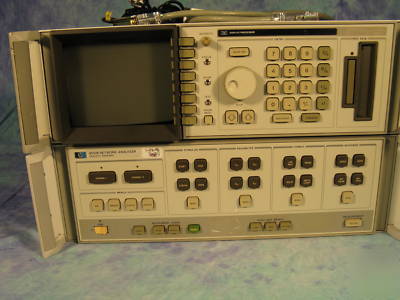

HP Agilent 8510B Network Analyzer Set
w/ HP Agilent 08510-60101 Interconnect Cable & Option 010

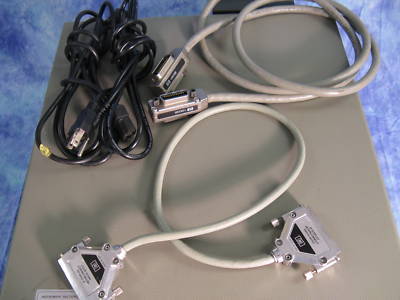

* Includes HP Agilent Interconnect Cable
* 45 MHz to 100 GHz frequency range
* "Real Time" error corrected measurements
* 60 dB effective directivity and source match
* 80 dB to 100 dB dynamic range
* 0.001 dB, 0.01 degree, 0.01 nanosec measurement resolution
The 8510 with option 010 has the capability of displaying the time domain response of a network, obtained by computing the Inverse Fourier Transform of the frequency domain response. The time domain response displays the reflection coefficient of the network versus time, which displays the magnitude and location of each individual discontinuity, or else the transmission coefficient versus time, which displays each individual transmission path.

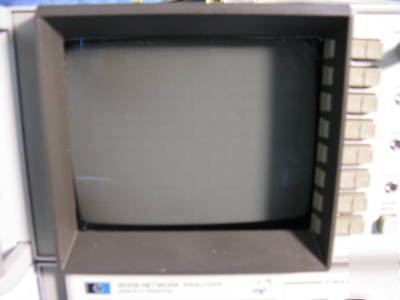

The 8510B powers up and appears to function, however the display unit is very dim, it can only be seen with the room light off. It will need repairing. Both units are in excellent physical shape and should be well worth the money spent for repairs. No warranty is expressed or implied on the HP 8510B.
