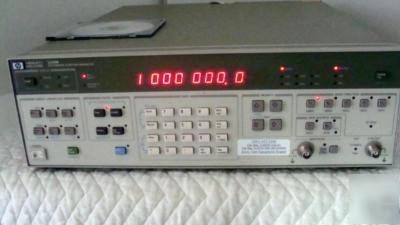

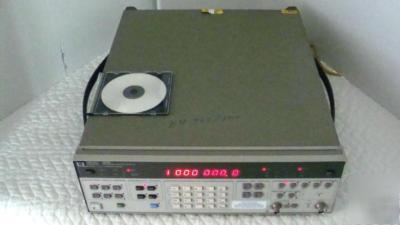

Hp agilent 3325B synthesizer/function generator w/opts
The HP - Agilent 3325B is a generator/waveform synthesizer with frequency accuracy, resolution, and stability that are ideal for applications such as crystal filter test, multiplexed communication system testing, clock/timing simulation and audio frequency system testing. Exceptionally linear triangles and ramp signals are produced with synthesized accuracy and stability for applications such as VCO testing or process control. The DC to 21 MHz frequency range (sine) makes the 3325B ideal for high-performance video system testing. Pure sine waves or high quality squarewaves can be combined with up to 5V of DC offset to interface with biased circuits or for stimulus in digital environments. In modulation applications, let the Agilent 3325B provide the carrier for a modulation source, or use the internal modulation source to get modulated signals from the 3325B alone.
The HP3325B Synthesizer Precision frequency accuracy is determined by a precision frequency-reference and can be set with a resolution of 1 uHz. It has up to -65dBc harmonic and -70dBc spurious levels for precision measurements. The phase of the output signal can be precisely controlled 719.9 with 0.1 resolution, and multiple HP 3325B's can be locked together for multi-phase applications.
SPECS: ***1 Hz to 21 MHz, 1 Hz resolution ***Sine, square, triangle, ramp and phase offset functions ***Internal programmable modulation source ***DC to 60 MHz sync output ***LOG, LIN and discrete sweep ***GPIB, RS-232 programmability.
Reasonable offers are well come. REASONABLE ONE!
