Dds-3005 arbitrary waveform generator w/2 freq cntr inp

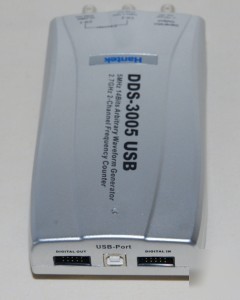

DDS-3005 Arbitrary Waveform Generator w/2 Freq Cntr Inp
The Hantek DDS-3005 is 5 MHz signal generator that can output sine waves, square waves, ramps, trapezoidal waves, as well as arbitrary waveforms. This unit uses a USB (2.0) interface to software running on a Windows PC to develop and output the desired waveform. Once the waveform is running, it can continue running without the PC. It also has two channels of frequency counter. One channel can handle DC to 25 MHz, and the second channel can work with 25 MHz to 2.7 GHz. This incredibly powerful unit comes with an incredibly low price.
* High performance/price ratio
* Output sine, square, ramp, trapezoid, exponent, gaussian noise, white noise, AM/FM or arbitrary waveform
* Frequency counter and pattern generator
* USB interface, bus powered (self powered hub recommended)
* Lightweight, easy to carry
* Windows NT/2000/XP/Vista, and Windows 7 compatible
* Includes support for LabVIEW, Visual Basic, Visual C++, Delphi and C++ Builder
Hantek DDS-3005 Specifications
0 ~ 50 MHz Continuously Adjustable in steps of 0.2 Hz
5 MHz, 1 MHz, 100 KHz, 10 KHz, 1 KHz // Programmable Control
-65dBc(1 KHz), -53 dBc(10 KHz)
8 Bits + Synchronized Signal 1 Bit + External Signal 1 Bit
