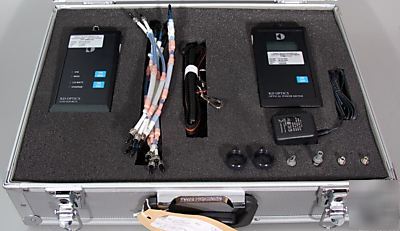

Amat pn:0240-92696 XR80 fiber optic troubleshooting kit
KD Optics PM-10 Power Meter & LS-10 LED Light Source Kit
Specifications are from KD Optics and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This kit was a surplus spare from Intel for trouble shooting fiber optics in Applied Materials (AMAT) xR80 Ion Implanters. It powers up but we do not have the ability to test it after that. It has 1 broken plastic fiber optic adapter.
List Price is: Around $1,450.00 from KD Optics, NEW.
The Power Meter's Serial Number Tag Reads:
The Light Source's Serial Number Tag Reads:
Calibration Date: 07, Oct, 2004
Calibration Due: 06, Oct, 2005
Description: Fiber Optic Troubleshooting Kit for xR80 Implanter
Multimode Loss Test Set Description:
The KD Optics range of Multimode power meters and LED sources are designed for the testing of LANs, FDDI, or other multimode links whether inside or outside a building. There is a power meter and LED source to suit every requirement. Every instrument comes with a carrying pouch or, if bought as a pair, a small ABS briefcase style carrying case is included. Although their main use is in cable attenuation testing, other applications include fibre continuity testing, connector testing, transmitter power testing etc.
Measurement Range: +5 to -60 dBm
Measurement Accuracy: 5% at -23 dBm
Optical Connector: Adapter caps for ST, SMA, FC/PC, SC, Diamond, FDDI, etc. (I believe SMA Adapters are provided)
Power Requirements: Alkaline PP3 giving 25 hours of operation, auto power off after 20 minutes except in dBrel
Special Characteristics: 660 30 nm
Spectral FWHM: Typical 50 nm (850 nm), 100 nm (1300 nm)
Output Waveform: CW or internally chopped at 1 kHz
Output Level: Typically > -20 dBm into 62.5/125 Multimode fibre
Output Stability: 0.1 dB or less over 1 hour at 23 C
Stabilization Time: Typically 60 seconds from power up at 23 C
Power Requirements: 2 x AA rechargeable NiMH cells using external charger (supplied) gives typically 20 hours use. Alkaline cells may be used if rechargeable batteries are flat and mains is not available.
* Picture 2 - Power Meter, Front View
* Picture 3 - LED Source, Front View
* Picture 4 - Power Meter Connector
* Picture 5 - LED Source Connector
* Picture 7 - Interchangeable Connectors Up-Close
* Picture 8 - Power Meter Serial Number
* Picture 9 - LED Source Serial Number Tag
