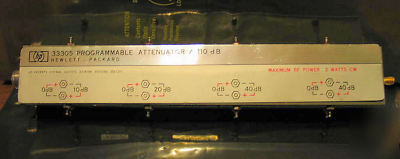

Agilent 33305D-005 programmable step attenuator 110DB
110 dB Programmable Step Attenuator
The Agilent 33305 is a programmable step attenuator from 0 to 110 dB in 10 dB steps with 24 volt solenoids and contacts over a frequency range of dc to 18 GHz.
The Agilent 33305 provides a fast and precise means for electrically controlling the level of signal attenuation in automatic test systems, receivers, and other RF equipment.
* Attenuation range: 0 to 110 dB, 10 dB steps
* Maximum SWR (7 mm): 1.4 to 8 GHz, 1.5 to 12.4 GHz, 1.7 to 18 GHz
* Repeatability life: 0.03 dB up to 12.4 GHz, 0.05 dB up to 18 GHz, 1 million cycles per section
* Connector type: choice of type-N Input SMA Output
* List Price is $1,439.00 for this.
