Hp 8765B opt 024 100 dc-20 ghz coaxial switch 24V

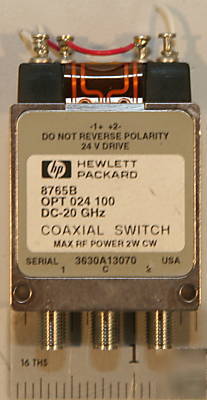

HP 8765B Opt 024 100 SPDT Coaxial Switch DC-20 GHz
Unterminated Single Pole Double Throw Switch - Break-Before-Make
Cost New From Manufacturer: $427.00
HP 8765B Opt 024 100 Coaxial Switch Specs:
* Frequency Range: DC to 20 GHz
* Insertion Loss: < 0.2 dB + 0.025 dB/GHz (0.2 dB @ 4 GHz, 0.5 dB @ 20 GHz Typ.)
* Isolation: 110 dB - 2.25 dB/GHz (120 dB @ 4 GHz, 90 @ 20 GHz Typ.)
* SWR, DC to 4 GHz: <1.2 (<1.15 Typical)
* SWR, 4 to 12.4 GHz: <1.35 (<1.3 Typical)
* SWR, 12.4 to 18 GHz: <1.45 (<1.4 Typical)
* SWR, 18 to 20 GHz: <1.7 (<1.4 Typical)
* Switching Speed: 15 mS Maximum
* Connector Type: SMA(Female)
* Solenoid Electrical Specifications: 24 (12 to 20) VDC, 200 mA @ 24 VDC
* Maximum Power Rating: 2 Watt average for switching with power applied; 100 Watt peak, non-switching
Agilent | 8765B Coaxial Switch, DC to 20 GHz, SPDT
Agilent 8765A/B/C/D Series Switches
