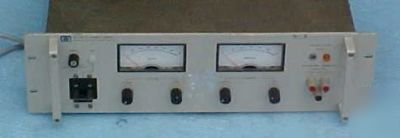

Agilent hp 6274B 60V, 15A, 900W dc power supply
The HP Agilent 6274B is a CV/CC supply that achieves high efficiency, excellent regulation, low ripple and noise, and moderate programming speeds in a compact, full rack width package.
Analog programmable and remote sensing
Auto-series, auto-parallel, and auto-tracking operation
<50us load transient recovery
Output ratings (0 - 55 C): 0-60 V, 0-15 A
Ripple and noise (20 Hz to 20 MHz): CV: 200 uV rms, 20 mV peak-to-peak; CC: 5 mA rms
Load regulation: 0.01% + 200 uV, 0.02% + 500 mA
Line regulation: 0.01% + 200 uV, 0.02% + 500 mA
Fully operational, email me at ****@pacbell.net for a PDF datasheet.
