Agilent 84906K programmable step attenuator 90DB - mint
Agilent Model 84906K Programmable Step Attenuator:The Agilent 84906K programmable step attenuator offers coaxial measurements to 26.5 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life (greater than 5 million switching cycles per section) and an attenuation range of 0 to 90 dB in 10-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of saphire substrate. Insertion loss is outstanding, with less than 2 dB of loss at 26.5 GHz. The compact size of the unit, 35 percent smaller than the Agilent 8495/7 (26.5 GHz) family, allows for easy integration into instruments and ATE systems. Applications:
Lab Use, Test Equipment, Video Equipment, RF Instrumentation and systems.

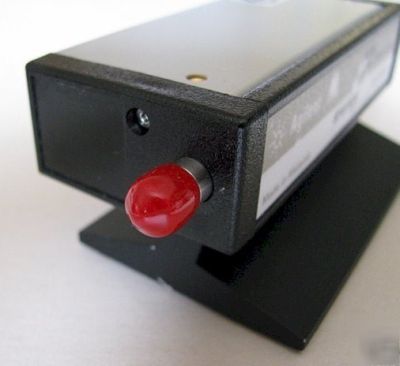

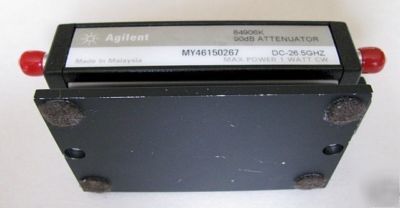

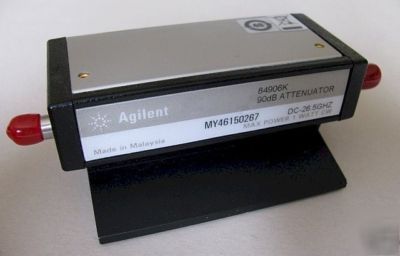

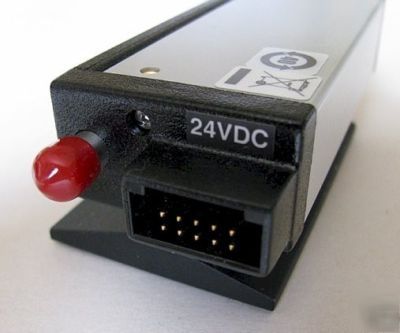

The unit is used, but near mint condition. There is some nicks in the black paint as you can see in the photos.
