500K-ohm 1-turn cermet trim pots murata 3104X lot of 10

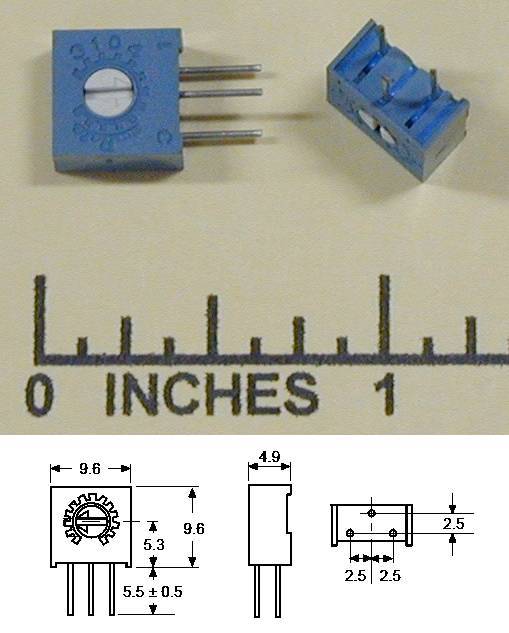

500K-ohm Single-turn Cermet trim pot, mfd by MuRata, type 3104X.
Vertical mounting with screwdriver adjust.
Dimensions shown are in millimeters.
Mounting hole pattern is standard 0.1" (2.5mm)Lot of 10 Pieces. Specifications:
Nominal Resistance Tolerance: 10%
Power Rating: 70 C 0.5W, 125 C 0W
Maximum Wiper Current: 100mA max.
Operating Temperature Range: 55 C to 125 C
Effective Rotational Angle: 280 15
Residual Resistance: 2 ohms max.
Contact Resistance Variation: 1% or 1-Ohm max., whichever is greater
value for multiple lots. It will almost always calculate too high.
