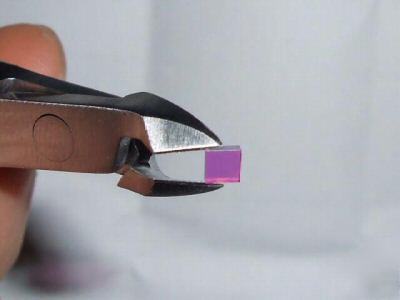

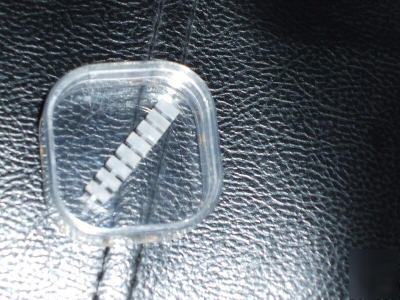

2%nd:YVO4 3X3X1MM3+ ktp 2X2X5MM3 laser crystal set
Nd:YVO4 is the most efficient laser host crystal for diode pumping among the current commercial laser crystals, especially, for low to middle power density. This is mainly for its absorption and emission features surpassing Nd:YAG. Pumped by laser diodes, Nd:YVO4 crystal has been incorporated with high NLO coefficient crystals (LBO,BBO,or KTP) to frequency-shift the output from the near infrared to green, blue, or even UV. This incorporation to construct all solid state lasers is an ideal laser tool that can cover the most widespread applications of lasers, including machining, material processing, spectroscopy, wafer inspection, light displays, medical diagnostics, laser printing, and data storage, etc. It has been shown that Nd:YVO4 based diode pumped solid state lasers are rapidly occupying the markets traditionally dominated by water-cooled ion lasers and lamp-pumped lasers, especially when compact design and single-longitudinal-mode outputs are required.
Nd:YVO4 s advantages over Nd:YAG
* As high as about five times larger absorption efficient over a wide pumping bandwidth around 808 nm (therefore, the dependency on pumping wavelength is much lower and a strong tendency to the single mode soutput)
* As large as three times larger stimulated emission cross-section at the lasing wavelength of 1064nm
* Lower lasing threshold and higher slope efficiency
* As a uniaxial crystal with a large birefringence, the emission is only a linearly polarized.
4 Coatings: S1: HR-1064/532, HT808 S2: AR-1064/532
Diode pumped Nd:YVO4+KTP green laser.
* 8W green laser was generated from a 15W LD pumped 0.5% Nd:YVO4 with intracavity KTP.
* 200mW green outputs are generated from 1W LD pumped 2% Nd:YVO4 lasers by using 2x2x5mm KTP and 3x3x1mm Nd:YVO4
* 2-5mw green outputs are generated from 180mw LD pumped 3% Nd:YVO4and KTP glued crystals.For more details,please refer to Glued Crystals
Warranty on Nd:YVO4 Specifications:
Transmitting wavefront distortion:less than /4 @ 633nm
Dimension tolerance:(W 0.1mm)x(H 0.1mm)x(L+0.2mm/-0.1)
Clear aperture:>90% central area
Flatness: /8 @ 633 nm, and /4 @ 633nm for thickness less than 2mm
Scratch/Dig code: 10/5 to MIL-O-13830A
Parallelism:better than 20 arc seconds
Perpendicularity: 5 arc minutes
AR coating:R<0.2% at 1064nm,HR coating:R>99.8% at 1064nm,T>95% at 808nm
Quality Warranty Period:one year under proper use.
Potassium Titanyl Phosphate (KTiOPO3 or KTP) is widely used in both commercial and military lasers including laboratory and medical systems, range-finders, lidar, optical communication and industrial systems.
Chemical and Structural properties
Orthorhombic, space group Pna21,point group mm2
a=6.404?, b=10.616?, c=12.814?, Z=8
x=11x10-6/ C, y=9x10-6/ C, z=0.6x10-6/ C
turning 45deG,AR./AR-1064/532 Warranty on KTP Specifications:
Dimension tolerance: (W 0.1mm)x(H 0.1mm)x(L+0.5/-0.1mm) (L 2.5mm)
(W 0.1mm)x(H 0.1mm)x(L+0.1/-0.1mm) (L<2.5mm)
Clear aperture: central 90% of the diameter
No visible scattering paths or centers when inspected by a 50mW green laser
Flatness: less than /8 @ 633nm
Transmitting wavefront distortion: less than /8 @ 633nm
Scratch/Dig code: better than 10/ 5 to MIL-O-13830A
Parallelism: better than 20 arc seconds
Perpendicularity: 5 arc minutes
Angle tolerance: 0.25 , 0.25
Damage threshold[GW/cm ]: >0.5 for 1064nm, TEM00, 10ns, 10HZ (AR-coated)
>0.3 for 532nm, TEM00, 10ns, 10HZ (AR-coated)
Quality Warranty Period: one half year under proper use.
