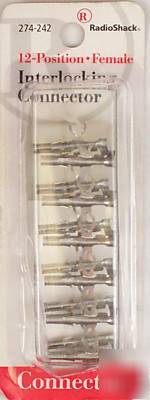

12-position female interlocking connector 8 amp 250 v
Female 12-Position Interlocking Connector.
Includes: 1 Female Polarized 12-pin molded nylon connector.
Polarized connectors are frequently used in appliances. These connectors are "keyed" to prevent accidental reversing. You can also swap male and female pins between the connector halves to make a unique plug that prevents connecting to the wrong cable.
Terminals in this package accept wire gauges #10 thru #14. The pins can be soldered or crimped. Male pins are normally used in the plug, female pins in the receptacle. They can, however, be interchanged to provide a great variety of polarization combinations when similar connectors are used adjacent to each other, and when wire leads are not otherwise polarized. Terminals are made of 70/30 spring-tempered, tin-plated brass, 0.010" thick.
Contact resistance: 0.0025 ohm
Maximum current per circuit: 8 amps
Maximum voltage per circuit: 250 volts
Use with matching item number 274-232.
RadioShack Cat. No. 274-242 Connector
