150 kva lors press type spot welder w/interlock 105 ctl

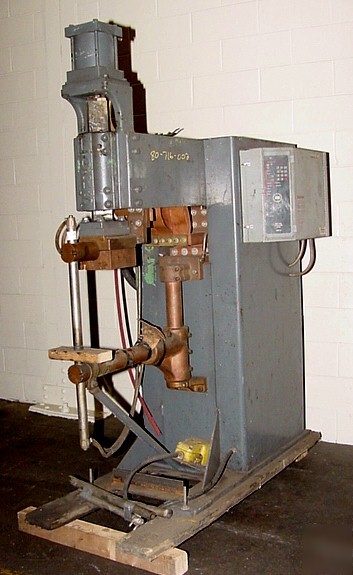

150 KVA LORS PRESS TYPE SPOT WELDER w/INTERLOCK 105 CTL
150 KVA LORS PRESS TYPE SPOTWELDER
MODEL 1150-AP S/N 1269-1607 NEW 1969
KVA ................................................. 150
RATED CAPACITY ........(2 PIECES COLD ROLL STEEL).... .280"
RATED CAPACITY ........(2 PIECES STAINLESS STEEL).... .155"
STROKE .............................................. 4"
VOLTAGE ............................................. 220
SECONDARY VOLTAGE ................................... 6.4
MAXIMUM VOLTAGE ..................................... 11
MAXIMUM SHORT CIRCUIT ............................... 38,400
ELECTRO FORCE @ 80 PSI .............................. 4,020#
HOLDER DIAMETER ..................................... 1-1/2"
ARM DIAMETER ........................................ 3"
- INTERLOCK INDUSTRIES MICROPROCESSOR CONTROL MODEL 105
