> Sony dxc-107A color video camera ccd-iris w/ HR055-cmt
Sony dxc-107A color video camera ccd-iris w/ HR055-cmt

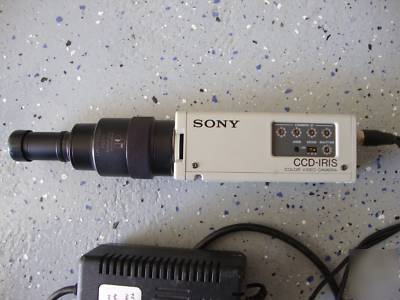

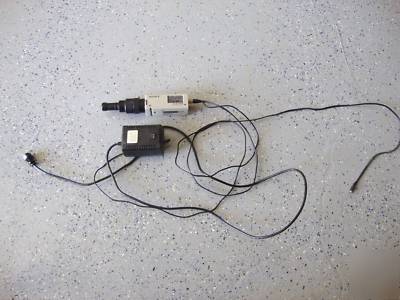

This unit is used and was replaced w/ a new system. It works perfect! Power supply, camera and HR055-CMT is included. Model Description:
1/2 inch Hyper HAD CCD Color Camera
Single CCD camera featuring 1/2" Hyper HAD sensor CCD.470 TV lines of horizontal resolution, 48dB signal to noise ratio, F5.6 sensitivity at 2000 lux.Unique features: backlight, spotlight and normal CCD iris, Y/C output when used with the CMA-D2.When the MVA-12, MVAC-33 and MVA-102 microscope adaptors are used with the DXC-107A, the effective viewing angle is changed because these adaptors are originally designed for 2/3" video cameras.The introduction of the Sony DXC-107 set a new standard for color video cameras in the industrial market - its compact, cost-effective design and excellent operational design ensuring its enthusiastic acceptance for a broad spectrum of applications.
* 470 TV lines of horizontal resolution
* High resolution 1/2-inch IT Hyper HAD sensor CCD offers high quality picture
* Minimum illumination of only 4.5 lux with f1.2 lens
* Small lightweight camera head can be installed on virtually any microscope
* Camera identification allows the user to superimpose four characters on picture; ideal when using two cameras
* Excellent signal-to-noise ratio of 48dB
* High horizontal resolution of 470 TV lines
* Improved Hyper HAD CCD image sensor provides higher sensitivity

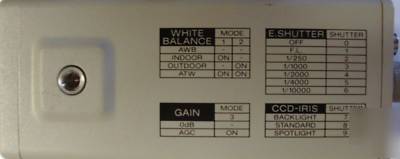

* Four alternative white balance control: Automatic control modes; AWB (Auto White Balance)/ATW (Auto Tracing White), Preset modes; INDOOR (3200K)/OUTDOOR (5600K)
* Minimum illumination of 4.5 lux at f1.2
* CCD IRIS control is incorporated eliminating the need for an automatic iris lens
* Improved CCD IRIS function, selectabe from 3 modes: BACKLIGHT, STANDARD and SPOTLIGHT
* Electronic Shutter with seven fixed speed modes: OFF to 1/10,000 of a second
* Variable speed electronic shutter is provided
* Built-in four digit ID number generator is provided
* Video/Power/Sync Multiplex system when used with CMA-D7
* External genlock capability of VS
* Internally-selectable Y/C or composite video signal when used with CMA-D2
* Together with the CMA-D7 or CMA-D2, DC power, video and sync can be transmitted up to 300 meters away through a single 5C-2V coaxial cable
* Remarkably compact and lightweight
* Camera identification allows the user to superimpose four charagacters on picture; ideal when using two cameras
* Improved CCD IRIS function, selectable from 3 modes: BACKLIGHT, STANDARD and SPOTLIGHT
* Electronic Shutter with seven fixed spped modes: OFF to 1/10,000 of a second
* Can be installed on virtually any microscope
* Superimpose four characters on a picture; ideal when using two cameras
* Provides higher sensitivity
* Choice of 3 modes: BACKLIGHT, STANDARD and SPOTLIGHT
* Compatible with C-mount type lenses or microscope adaptors
* When used with CMA-D2 or CMA-D2MD Power Supply
* Sensitivity: 2000 lux with f5.6
* Operating Temperature: 0 C to 40 C(32 F to 140 F)
* Connectors: DC IN/VIDEO OUT (BNC), DC IN (12-pin) LENS (4-pin)
* Power requirements:: DC 10.5 to 16V using CCMC-12P multi-core cable (supplied form CMA-D2/D7)
* Maximum illumination:: 4.5 lux with f1.2
* Power consumption: 3.3W using CCMC-12P multi-core cable 6.3W using co-axial cable (CMA-D7 only)
* Image device: 1/2-inch Hyper HAD Interline Transfer CCD(x1)
* Picture elements: 768(H)x494(V)
* Sensing area: 6.4mm x 4.8mm (1/2-inch)
* Signal system: EIA standard, NTSC color system
* Scanning system: 525 lines, 2:1 interlace
* Sync system: Internal/external with VS
* Horizontal resolution: 470 TV lines
* Gain control: AGC (ON/OFF selectable)
* Electronic shutter: OFF(1/60s), 1/100 (FL), 1/250, 1/1000, 1/2000, 1/4000, 1/10000(s)
* Weight: Approx. 360 g (12.7oz)
* Dimensions: 130 x 50 x 55 mm (WHD)5 1/8 x 2 x 2 1/4 inch (WHD)
* Signal-to-noise ratio: 48dB
* Phase control: H phase control
* White balance: AUTO: ATW or AWBPRESET: 3200K or 5600K
* Video out: VBS: 1.0Vp-p, 75 , without sync
* CCD IRIS control: BACKLIGHT/STANDARD/SPOTLIGHT selectable
* Camera number ID: Four digit - Characters: 0,1,2,3,4,5,6,7,8,9, A,B, C, D, -, (SPACE)
* Maximum cable length: 300m using RG-6A/4 co-axial cable and CMA-D7 50m using CCDC-50A cable and CMA-D2 25m using CCMC-12P25 multi-core cable and CMA-D2/D7

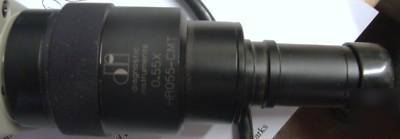

High resolution microscope adapter for mounting C-mount cameras onto microscopes. The HR055-CMT is a 0.55x adapter which provides a wide field of view for cameras with 1/2 format CCD sensors. The HR055-CMT has a parfocality adjustment ring that can be twisted to achieve simultaneous focus between the microscope eyepieces and the camera display.
The HR055-CMT can be used on many different microscope models through the use of microscope-specific bottom clamps. You will need to order a bottom clamp specific to your microscope in order to use the HR055-CMT.
