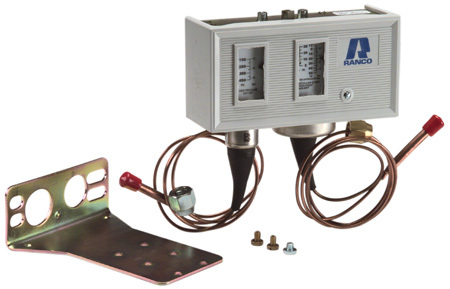

New ranco convertible dual pressure control 012-4834
* Suitable for all new refrigerants
* SPST switch is actuated by both high and low pressure sides
* Electrical Rating: 120/240VAC 24 FLA; 144 LRA; maximum resistive load 24A; maximum pilot duty 720VA
High Side: Automatic, convertible to manual.
Ranges:Low Pressure (Cut In): 10"(Hg) - 100 PSIGLow Pressure Side Differential: 10-40 PSIG High Pressure (Cut-out) 150-450 PSIGHigh Pressure Differential: 70 PSIG (fixed), or convertible to Manual Reset Connections: 48" (dual) cappillary, w/ 1/4"SAE 45 degree female flare. Includes universal mounting bracket with screws.
