> Mastech variable regulated d p s(HY3005F-3) 0-30V/0-5A

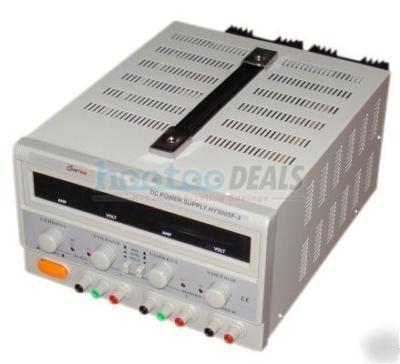

Mastech variable regulated d p s(HY3005F-3) 0-30V/0-5A
MASTECH HY3005F-3 DC POWER SUPPLY DUAL VAR 0-30V @ 0-5A
HYelec HY3005F-3 VARIABLE DC TRIPLE OUTPUT POWER SUPPLY
DUAL DIGITAL LED DISPLAY METERS
VOLTAGE VARIABLE FROM 0 to 30 VOLTS
CURRENT VARIABLE FROM 0 to 5 AMPS
BRAND NEW IN BOX - 1 YEAR WARRANTY
* Variable Output 0-30 V and 0-5 A
* Variable Output 0-30 V and 0-5 A
* Fixed Output 5V and 3A
* Input Voltage: 110V/ 60Hz
* Voltage and Current Dual adjustment
* Line regulation: CV<0.01%+1mV, CC<0.2% + 1mA
* Load regulation: CV<0.01% +3mV (I 3A), CC<0.2% +3mA (I 3A), CV<0.01% +5mV (I > 3A), CC<0.2% +5mA (I > 3A),
* Ripple & noise: CV<0.5mV r.m.s (I 3A) , CC<3mA, r.m.s (I 3A), CV<1.0mV r.m.s (I > 3A) , CC<6mA, r.m.s (I > 3A)
* Protection: Reverse Polarity, Current Limiting, Short Circuit
* Red and Green LED Display
* Size: 14.5 x 10.5 x 6.5 inch
