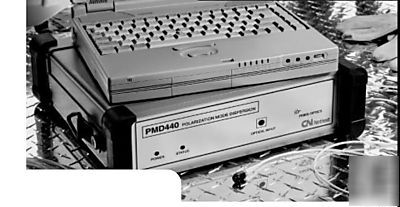

Gn nettest PMD440 pmd analyzer system
GN Nettest PMD440, PMD-440 Polarization Mode Dispersion
PMD Analyzer System measures a form of pulse dispersion which can cause the optical receiver to be unable to interpret signals correctly, resulting in high bit error rates. PMD can dramatically decrease a fiber optic networks performance, particularly those networks operating at high data rates such as OC-192 (STM-64) or OC-768 (STM-256).
Model: GNN/PMD440;RT1 - PMD ANALYZER SYSTEM -HIPOWER
1 181072-10 -Cable, RS 232, 25pin Male-25p Male
1 320743B-01 -DAQPad - 1200 User Manual
1 32172 -PMD440 Operators Manual
1 460-1 -Cable, RJ11/RJ11 4W 7FT
1 500445N-00 -CDs (set of 2), Data Acquisition Driver Software
1 F001FCFCSM-001M -FC/FC Simplex Jumper, Singlemode, 1-meter
1 GNN PC POWER CORD -Power Cord
1 PMD440 CARRY STRAP -PMD440 CARRY STRAP
1 PMD440 INSTALL DISKS -Disks, PMD440 software, serialized to asset qty 2
1 PMD440 TRANSIT CASE -PMD440 Transit Case FOR everything
1 PMD440/1550XHP -1550nm High Power Source (PerkinElmer)
1 PMD451 -Optical Attenuator, 15dB at 1550nm
