24"/35" x 240"cc lansing #G24 gap bed engine lathe '70S

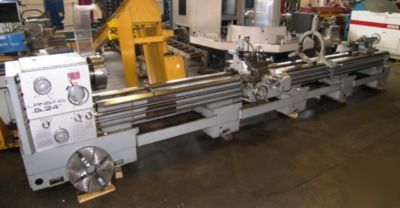

Preowned 24"/35" x 240"cc LANSING Removable Gap Bed Engine Lathe, Model G24 S/N 211181 (New 1970's)
Headstock & tailstock spindle center taper
American Standard threading range
Feed changes: longitudinal (80)
cross (80)
Four-way rapid traverse to carriage and cross slide
Dual t-slots on rear of cross slide
19-1/2" Diameter four-jaw chuck with reversible jaws
16-3/4" Diameter BISON three-jaw chuck with removable and reversible jaws
17" Diameter capacity three-point roller-type steady rest
7" Diameter capacity three-point roller-type follow rest
Quick-change toolpost with (3) holders
Tailstock with (1) live center, (1) plain center, (1) bull nose center, and (1) 1/8"-3/4"
capacity JACOBS key-type drill chuck
20 H.P. 3/60/220-440 volt spindle drive motor with amp meter and electrical controls
