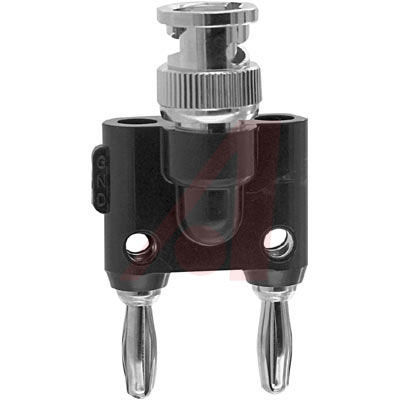

Pomona 1270 bnc (male) to double stacking banana plug
* Adapter converts Double Banana Jack Test Instruments to BNC Coaxial configuration for added shielding protection.
* For test versatility, banana plugs can be vertically and horizontally stacked to the adapter.
* Banana Plug springs feature Nickel Plated, Beryllium Copper for tarnish resistance & long insertion life.
* The BNC center contact is Gold Plated, Brass for low contact resistance
* The BNC shell is plated for tarnish resistance.
Body: Brass, Nickel Plated
Center Contact: Brass, Gold Plated
Spring: Beryllium Copper, Nickel Plated
Insulation: ABS Molded to BNC (Male) and Banana Plug Bodies, Color: Black
Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 500 VRMS Max.
Operating Temperature: +50 C (+122 F) Max.
