Phoenix megalink 5575A T1 micro bert with drop / insert

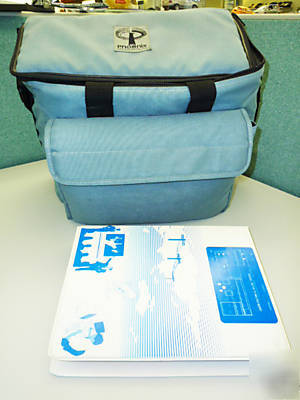

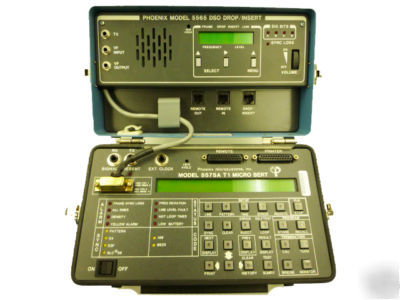

(1) Used and Tested Phoenix megalink 5575A T1 Micro BERT with Phoenix Model 5565 DSO DROP / INSERT
Phoenix 5575A T1 Micro BERT Test Set

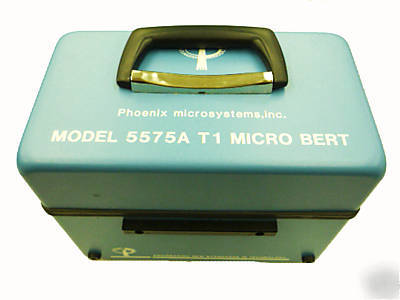

The Phoenix 5575A is a full function bit tester designed for use on 1.544 Mbps T-carrier links. The 5575A is packaged in a rugged, aluminum housing with a convenient carrying handle.

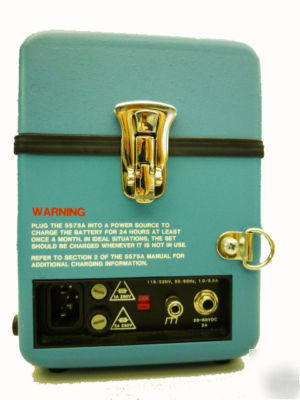

Unit operate at 115VAC 60Hz and 230VAC 50Hz, selectable voltage.
Input Connectors WECO 310 jack and 15-pin, D-Shell network interface connector.
Input Frequency 1544000Hz + 300Hz
Input Impedance Bridge = Greater than 1000 ohms
Operating Range Bridge = +6dbDsx to -30dbBsx;
ALBO compensates for cable loss
Term & CSU = +6dbDsx to -30 dbDsx;
ALBO provided with fixed +20db amplifier to fully compensate to DSX monitor series
Selectable with 0, -7.5, and -15db attenuation
Provided on WECO 310 jacks and 15-pin D-shell network interface.
Complies with AT&T Pub. 62411 & CCITT Recommendation G.703 when terminated in 100 ohms.
