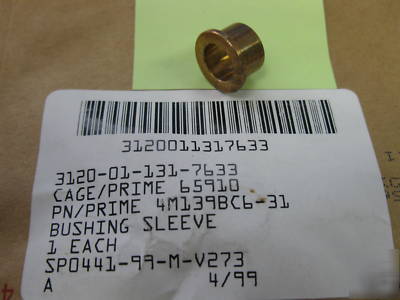

Copper alloy bushing sleeve - p/n #4M139BC6-31
Copper Alloy Bushing Sleeve -
COPPER ALLOY 172 OR COPPER ALLOY 173 OVERALL
QQ-C-530, COND HT FED SPEC ALL MATERIAL RESPONSES OVERALL
0.3650 INCHES MINIMUM AND 0.3770 INCHES MAXIMUM
0.5016 INCHES MINIMUM AND 0.5023 INCHES MAXIMUM
0.3685 INCHES MINIMUM AND 0.3700 INCHES MAXIMUM
0.6150 INCHES MINIMUM AND 0.6350 INCHES MAXIMUM
0.0600 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM
SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
76301-4M139 MANUFACTURERS STANDARD
(NON-CORE DATA) UNDERCUT WIDTH
(NON-CORE DATA) UNDERCUT DEPTH
0.0050 INCHES MINIMUM AND 0.0100 INCHES MAXIMUM
