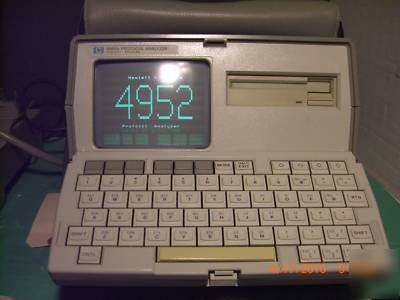

Hp 4952A RS232 / x.25 analyzer & tester guaranteed
Verified that EVERYTHING WORKS
Cleaned and Inspected Inside and OUT

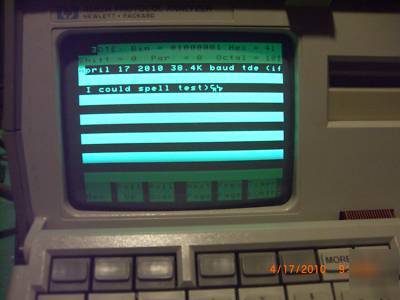

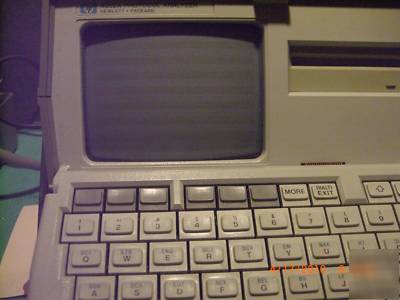

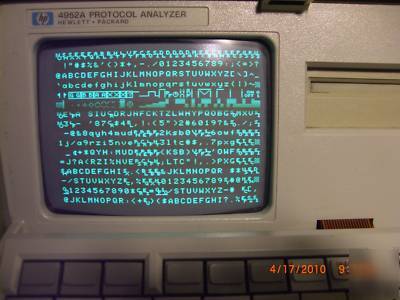

Screen has ghost as most video screens of this age will (see photo)

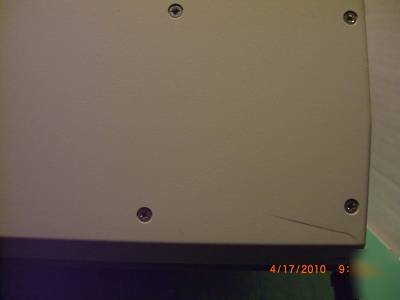

Underside of keyboard has small crack (has no effect on functionality of unit)
I have 20+ years of experience as a test engineer
If you do anything with RS-232 this is a must
I have used 495!C & 4952A for many years
debugging many different kinds of custom communications protocols
- Each unit is cleaned inside and out -

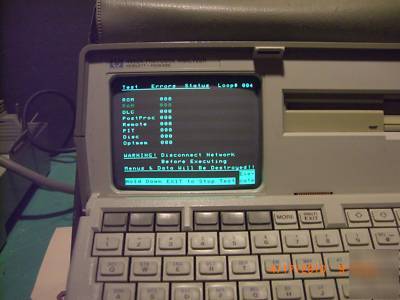

- I verify that the unit passes all self tests -
- I verify that the units 'Mass Storage' works -

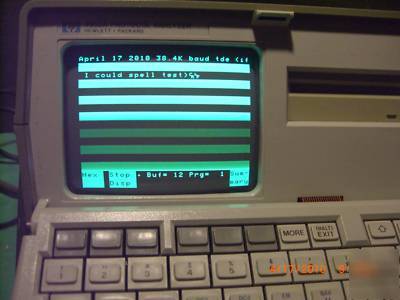

I verify that the unit can monitor and record data at varied baud rates
The Analyzer (by its self) sells for $200+ See Link1, (many other listings 'request quote')

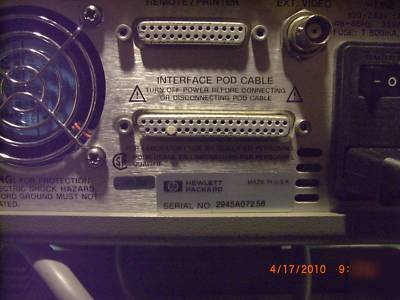

The pod cable sells for $150+ See Link1, Link2 (P/N 5062-2144)
Pods sell for $100+ See Link1, Link2
The Software Disk (included) sell for $150+ See Link1, Link2 (P/N 18260-16001)
Original Retail Price $8000.00
This Unit has Rev 02 installed
NOT find another guarantied to work Analyzer for this price
Analyzer is guaranteed to work
Click here for Analyzer data sheet
Click here for video on setup of the 4952A / 4951C
(123 Meg file - Broadband Connection Only)
IF you have any questions please email ****@wgunkel.com
After purchase help on how to use the analyzer please email me
More then happy to walk you through how to setup and use your new analyzer
Copy of HP Utility Disk 04952-16001
The Analyzer will be wrapped in thick layer of bubble wrap.
The Analyzer will then be placed in a new over sized box
with additional bubble wrap to ensure the product's quality.
The Analyzer will pass self test without any failures
You will be able to connect the analyzer to RS232 source
Once properly connected to an RS232 source you will be
able to capture and recorded at the specified baud rates
Please email (****@wgunkel.com) me if you have any problems
Item can not be returned without first contacting seller ****@wgunkel.com.
Seller not responsible for abuse or misuse of the item.
Requires Option 002 (36k, 56k, 64k baud & 750k ram)

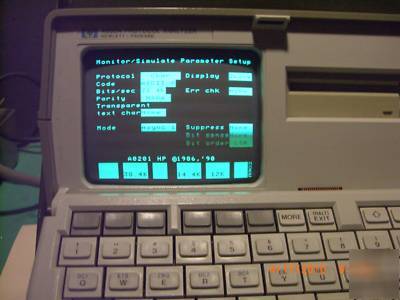

Monitor & decode data transmissions
Stores Leads status - RTS, CTS, DTR, DSR, CD (RS-232)
Stores Leads status - CS, RS, RR, TR, DM (RS-449)
Data Codes - ASCII (8,7 Bit), HEX (8, 7, 6 ,5 Bit) EBCDIC (others)
Framing - 5, 6, 7, 8, Even Party, Odd Party, No Party, 1 Stop bit, 1.5 Stop bit, 2 Stop bit
Error checking - CRC-CCITT, CRC-16, CRC-12, CRC-6, LRC & party
Display formats - DTE only, DCE only, DTE over DCE, Data & State, Frame & Packet
Programmable - 63 Triggers, 5 Timers (1 msec resolution count 65565), 5 Counters up to 9999
Asynchronous terminal emulator (may require loading external software)
Printouts to all RS-232/V24 ASCII printers
Floppy Disk (3 -inch custom format) store 613 Kbytes of data, timing, lead status, programs, and configurations
Tape drive stores 512 Kbytes of data, timing, lead status, programs, and configurations
18174A 18174A RS-449/422A/423A
18179A 18179A RS-232/V.24 RS-232 testing with full break out box
18180A 18180A RS-232/V.24 RS-449/422A/423A
With optional software supports asynchronous baud rates up to 64k baud
With optional software make copies of disks (NOTE: some software is copy protected only 1 copy can be made)
Features listed are for reference only
No guarantee is given or implied that all Analyzers have the listed features
