> Used 6" dia waeschle stainless steel rotary valve
Used 6" dia waeschle stainless steel rotary valve

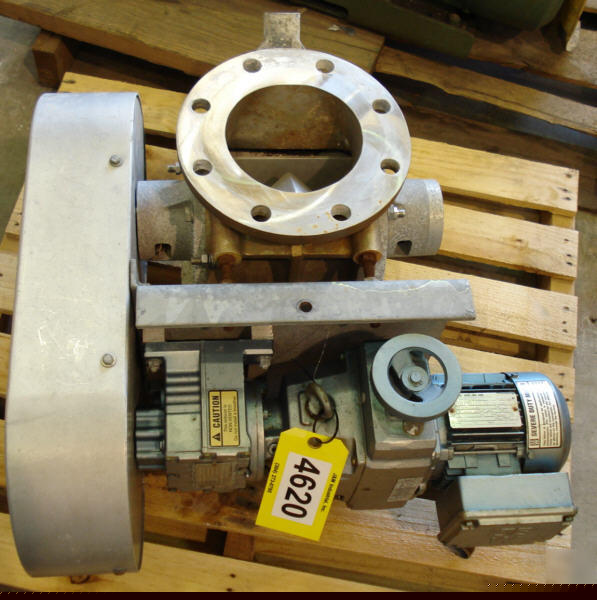

USED 6" DIA WAESCHLE STAINLESS STEEL ROTARY VALVE
TYPE ZVB200.1-4.5-SS. S/N-94279-10. ITEM NUMBER RV-2615. MANUFACTURE DATE 2001. MAXIMUM WORKING TEMPERATURE 80 DEGREES C. MAXIMUM WORKING PRESSURE 1.5 BAR. VALVE IS CAST STAINLESS STEEL WITH PELLET ADAPTOR. FIXED TIP 8 POCKET CLOSED END ROTOR DESIGN WITH PRESSURE VENT ADAPTOR. PURGED PACKING GLAND EURODRIVE VARIABLE SPEED MOTOR AND GEAR REDUCER. MOTOR IS 0.5 HP, 1700 RPM, 1.15 SERVICE FACTOR, 230/460 VOLT. GEAR REDUCER IS VARIABLE SPEED SEW-EURO DRIVE WITH 68.47 RATIO. VALVE IS 14.25" HIGH. FLANGE O.D. IS 11 1/8", I.D. IS 6.5" WITH 8 BOLT PATTERN. EXCELLENT CONDITION.
