T-berd 209-osp 209OSP w/isdn & dds analyzer lid

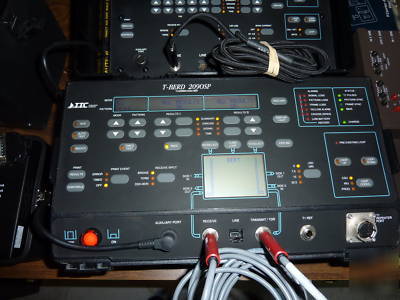

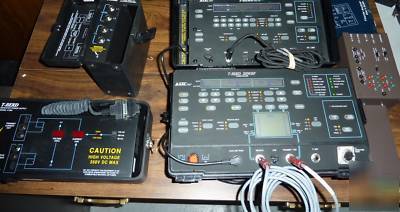

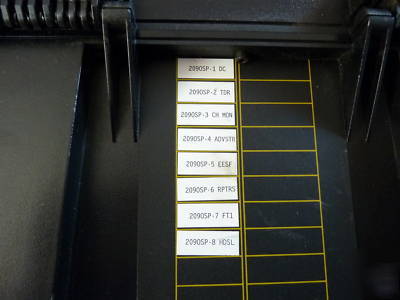

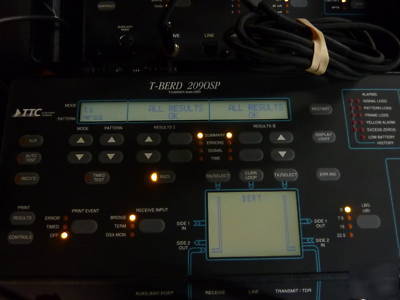

JDSU/TTC/Acterna T-BERD 209-OSP T1/FT1/ISDN/DDS/HDSL Tester with options 1, 2, 3, 4, 5, 6, 7 and 8

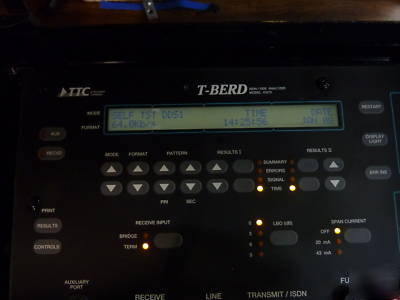

* Model 43275 ISDN/DDS Analyzer 209-OSP Cover

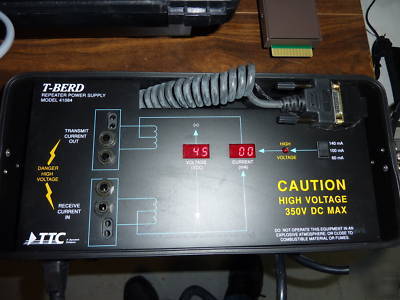

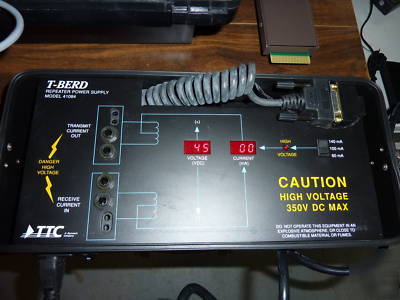

* Model 41084 Repeater Power Supply

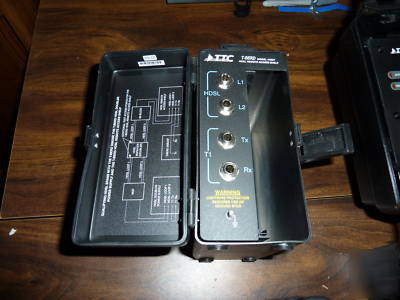

* Model 44527 HDSL Remote Access Shelf

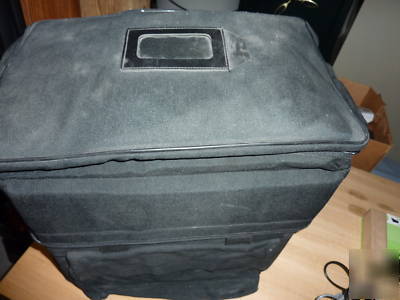

* Large Soft Side Storage Case
* Option 4: Advanced Stress Patterns
* Option 6: Smart Loopback/Command Codes
* Option 8: HDSL Measurement
Unit is in very good used condition with normal scratches from use. All hinges, latches, and handles work properly. No major damage found on the unit or accesories.
Technical Data Below as Acquired from Manufacturer:
Manufacturers Product Datasheet: TTC / Acterna T-BERD 209 OSP Outside Plant Tester
Full Span Transmitter and Receiver Identify marginal troubles with standard T1 stress patterns at various output levels. Easily access signal and error information. Service-effecting results are automatically displayed in SUMMARY RESULTS category.
Cable Qualification Identify cable impairments such as opens, shorts, bridged taps, load coils, splits, crimps, partial opens, grounds, and resistive shorts. Distance to fault is displayed in feet.
Automated Testing Qualify T1 spans at the push of a button with AUTOTEST, automated MULTIPAT, and BRIDGTAP stress patterns, and automatic receiver configuration.

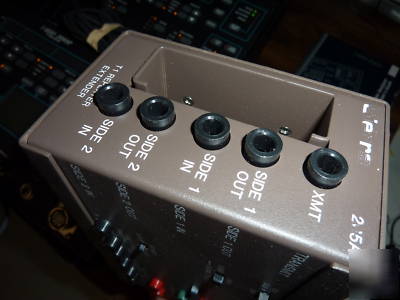

Repeater Adaptor Cable-in once. Complete test access to repeated spans without the use of several cumbersome cables.
Graphical Display Control test access with the push of a button. View graphic TDR response to verify cable impairments.
Flash Memory Complete field software upgrade in minutes.
Lead Acid Battery Five hours of testing time with the lead acid dependability.
Rugged Enclosure The rugged, NEMA-4X-compliant design keeps the harsh elements out of the unit working, no matter what the testing conditions. Copper Analysis with DC measurements and graphic TDR
Combined testing of digital services and circuits - T1, HDSL, DDS and ISDN
Field-upgradeable software allows for building a custom test set
Rugged NEMA 4X compliant design endures the harsh weather conditions
Battery-powered operation allows for field-portable testing
Reliable testing and proven performance
The Acterna T-BERD Outside Plant Tester (209OSP) is a complete tool that meets the exclusive testing requirements of the outside plant technicians. It combines copper prequalification features (TDR and DC measurements) with service turn-up and troubleshooting features for T1/FT1/HDSL/ISDN/DDS technologies. The combination of copper analyzer and digital loop tester features makes the T-BERD Outside Plant Tester the most flexible, all-in-one solution for outside plant testing.
The T-BERD Outside Plant Tester can verify physical layer functionality by performing standard BER testing. In addition, it performs DC measurements to accurately identify copper faults. The TDR's graphical display allows the technician to view the respective faults and confirm the location, as well as the type of fault. Along with BER Testing, the T-BERD Outside Plant Tester can use intelligent repeater technology to sectionalize span problems, while the preprogrammed loop codes enable the user to loopback various equipment on the span. When equipped with the HDSL/ISDN/DDS Measurement Option, the T-BERD Outside Plant Tester is able to perform loss measurements at various frequencies to assure proper signal level on the span for HDSL, ISDN, BRI, and DDS circuits.
Loop Loss: 0.0 dB to 40.0 dB
Loop Length Range: 100 to 20,000 feet
Capacitance: 1500 pF to 323,500 pF
Power Measurement: -40.0 to +13.0 dBm
AC Operating and Charging Power: 115 VAC +/- 10%, 50-60Hz
Battery Operation: 5 hours (nominal)
Battery Charging Time: 8 hours (nominal)
