> Sokkia DT510 dt 510 5 total station digital theodolite
Sokkia DT510 dt 510 5 total station digital theodolite

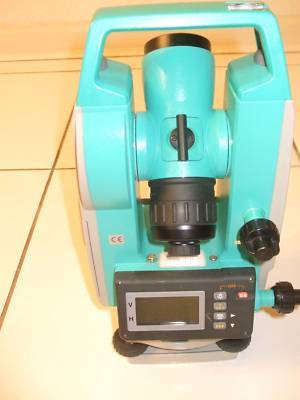

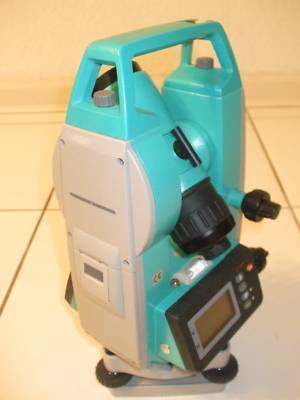

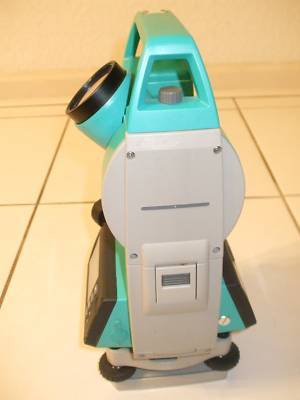

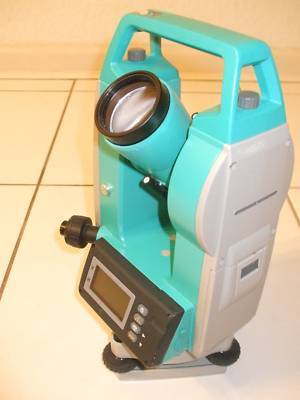

Sokkia DT510 5" Electronic Digital Theodolite
Great working condition. Dual displays both powers up and functioning. All pivots swivel smoothly with no binding. All parts, buttons and knobs are intact and functioning. Uses 2 C batteries.
Click here to download brochure
What you see in the pictures is what you will get. Case and charger are not included.
I have described this item to my best of ability. If you have any questions, feel free to email me before purchasing. Thanks.
NOTE: We do not warranty the batteries. If the pictures show the item powered on, then the battery worked during the photo sessions. How long it will hold its charge thereafter and/or the battery's age are unknown and are not guaranteed.
Survey with ease using the absolute encoder's new algorithm that operates with remarkably reduced power consumption. When the instrument is restarted, the azimuth is automatically restored to save time on the job site. A large LCD screen provides clear angle reading under all conditions, and thanks to simple 4-key operation, no training is required.
You can select the angle display unit that best suits you. Horizontal angle is switchable between clockwise and counterclockwise, and angle hold and 0-set functions are also provided. Vertical angle can be set to Zenith=0, Horizontal=0, Horizontal=0+/-, or % of slope.
Enhanced reliability with absolute encoders
Sokkia's market-proven advanced absolute encoders, which utilize RAB (RAndom Bi-directional) code and digital sampling technology, further enhance the reliability of angle measurement. DT510 guarantees 5" (5 second) accuracy for both horizontal and vertical angles.
You can start taking measurements as soon as you turn on the power, thanks to the absolute encoders. Moreover, azimuth is kept when restarting the instrument after turning off the power.
Easy-to-read, easy-to-use control panels
A large LCD screen provides clear angle readings under all conditions, and thanks to simple 4-key operation no training is required. The DT510 has control panels on both faces for added convenience.
The DT510 automatically compensates both vertical and horizontal angles by monitoring the tilt of the instrument in X & Y two directions.
Audible right-angle notification
Once the zero (0) horizontal angle direction is determined, all models emit audible tones for each of the four right-angle directions. Specifically, it sounds two different tones within +/-15 degrees of 90 degrees and stops beeping when it comes within +/-1 degree.
Complying with the tough IP66 standard for resistance to dust and water, both models offer superior dependability even under harsh environmental conditions.
Measurement data can be output to external devices via the RS-232C data port.
* Telescope Magnification: 30X
* Display Resolution (selectable) H & V: 1"/5",0.2/1mg, 0.005/0.02mil
* Accuracy (ISO 12857-2 1997): 5"

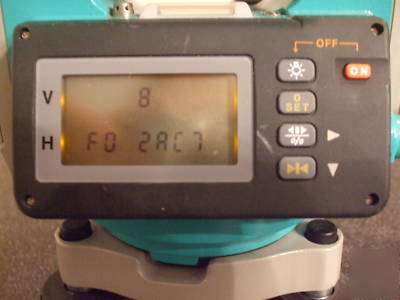

* Display: LCD, 8 digits x 2 lines w/backlight
* Display location: On both faces
* Compensator: Dual-axis compensator, working range 3" ( 55 mgon)
* Dust and water protection: IP66 (IEC60529)
* Weight with handle and battery: 4.7kg (10.3lb.)

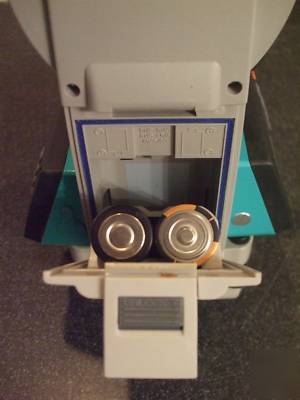

* Battery: LR14/C batteries x2
* Continuous use with alkaline batteries: Approx. 75 hours
