Tektronix TLA7PG2 1M/1P 268MHZ 64CH 2MB pattern generat

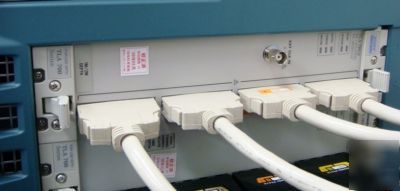

Tektronix TLA7PG2 Op 1M/1P 268MHz 64ch 2Mb Pattern Generator Module Logic Analyzer Main Frame
32/64ch,268/134MHz,2M/1M memory Max4000step
BlockLength 40-1048572 80-2097144(half) Max4000block
Sequence Repeat1-65536 Waitfor JumpIf SubSequence
Clock 0.5Hz-134MHz 268MHz(Half) 8digits acc100ppm EXT
TTL/CMOS, ECL, PECL/LVPECL, LVDS, LVCMOS Standard Logic Levels
Output 2-5.5V step25mV Serial75 Ohms 33H114W138D 250g
Driver 74LVC541A Clock 74LVC244A
Opt 1M:Increase to 1 Mb depth(2Mb half)

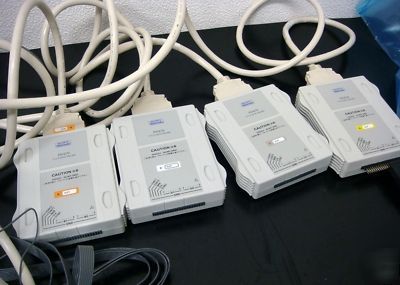

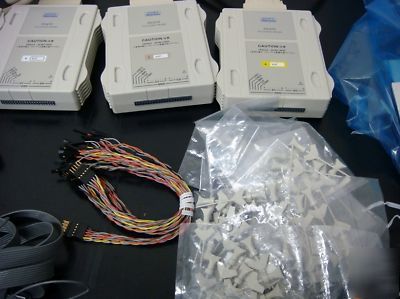

Accessory:SMG50(ClipChip Adapter)*4,manual Warranty: one month , 5 days return rightMain frame is separate sale. Please request what do you need .
Hitech&Facility in Japan Phone: +81 505551-6261
