New danfoss amv 523 / 027B0123 actuator w amek module

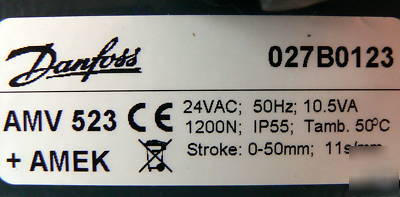

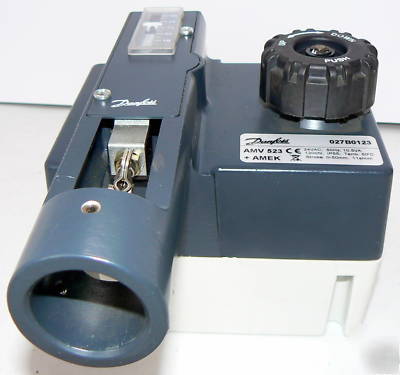

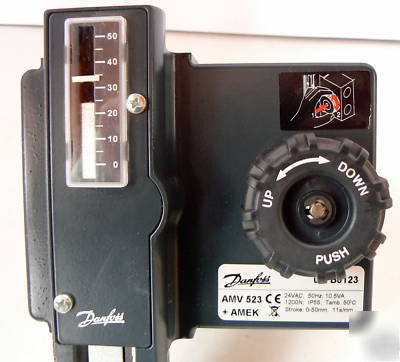

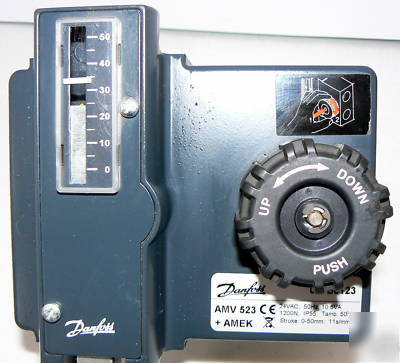

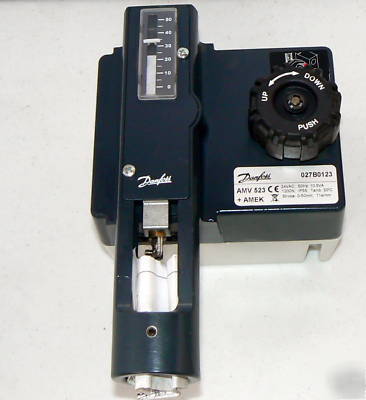

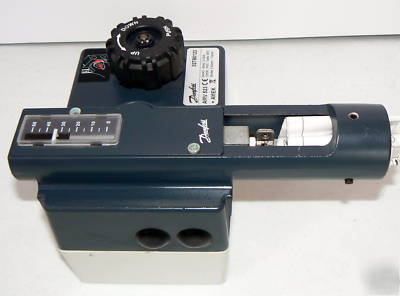

DANFOSS AMV 523 / 027B0123 ACTUATOR w AMEK 082B3301 MODULE NEW.
The AMV 523 is an actuator for three point control. In addition to basic functions such as manual control and position indication, the advanced design incorporates load related 'switch-off' to ensure that neither actuators nor valves are not exposed to overload.
INCLUDES DANFOSS AMEK MODULE PART # 082B3301
The built-in function module AMEK is designed for use together with gearmotors AMV 323, 423 and 523. The module incorporates a contact set with two double contacts. The contacts are used for signalling
and can be adjusted individually to the whole motor operating range.
Contact function 2 SPDT, fully adjustable
Ambient temperature Min 0 C, max 50 C
Transport and storage temperature Min 40 C, max 70 C
