Mks instruments 121A 121AA-05000C baratron transducer

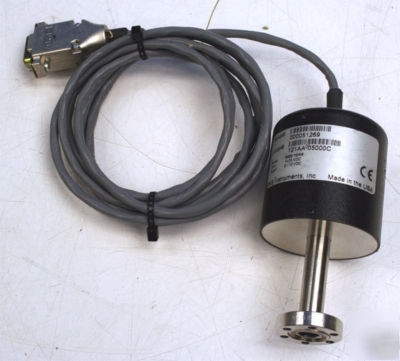

MKS Instruments Inc. Type 121A 121AA-05000C Absolute Pressure Transducer
In addition to the sensor and remote electronics unit (signal conditioner not included), the 121 instrument has a shielded cable (8 ft. standard length) with a Type D connector attached to it. The separate housings of the sensor and electronics unit enable the sensor to be heated to 150 C and allow the electronics unit to be mounted in a convenient location. The shielded cable and connector provide maximum zero stability, therefore requiring less adjustment. The cable is also easily disconnected from the sensor when preparing the instrument to operate in temperatures up to 200 Celsius (for maximum bakeout).
The Type 121 Absolute Pressure Transducer also has the following standard features:
* Sensor constructed with all-Inconel for corrosion resistance
* Total pressure measurement range of over four-decades
* High level 0 to 10 VDC output linear with pressure
* Dual electrode bridge circuit design for maximum zero stability
If you have any questions please email us at: ****@mhzelectronics.com or call Brent at 1-866-MHZ-ELEC (1-(***)-649-3532) Toll Free.
