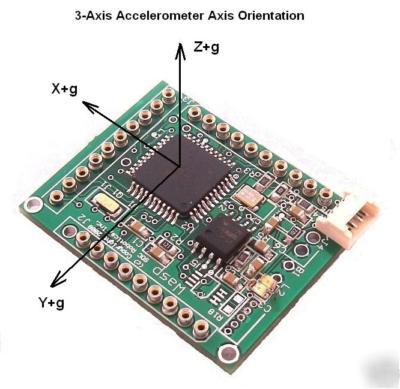

> Waspgplus avr + 3-axis accelerometer + 16BIT a/d-d/a
Waspgplus avr + 3-axis accelerometer + 16BIT a/d-d/a

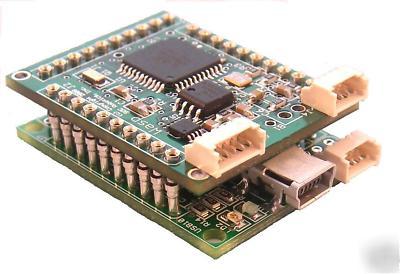

The WaspGPlus comes pre-loaded with a sample data acquisition program burned into the Flash - complete source code to the sample program is available as a free down load from our web site. All the software tools are open source - included is a C compiler, linker and loader. Other daughter cards are available for prototype development, LCD control, data acquisition and RF applications. New applications can be written in C using Windows IDE tools or GNU C tools and then burned into Flash. The latest AVR Studio from Atmel integrates the C GNU tools into the AVR Studio IDE for seamless Windows development.
Download the Wasp Hardware Technical Reference Manual (pdf).
The Wasp Data Logger Application is described here Wasp Data Logger V0.91(pdf).
The Wasp Data Logger Application source code is here Wasp Data Logger Applicaton Source Code V0.91(zip).
The following options can be ordered with the WaspGPlus:
ISP10 - Parallel Port Programming Adapter
* ATmega644 RISC Microcontroller (10.0MHz)
* Real time clock (32.768KHz)
* 6 Pin ISP Port for programming
* 2.8-3.3VDC in (polarity protected)
* Nominal power consumption: 8ma active, 0.8ma standby
* Optional Features (user installed )
