> New CW2501M elgar ac power source 2500 va brand

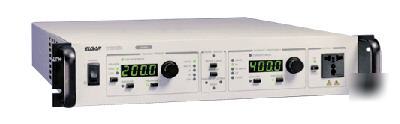

New CW2501M elgar ac power source 2500 va brand
Signal Test is a worldwide distributor of new and used electronic test equipment, with headquarters in San Diego, California, USA. Product brands include: Agilent, Tektronix, Fluke, Rohde & Schwarz, Rigol, AEA technology, Xantrex, Ametek, California Instruments, Keithley, Anritsu, Sorensen, Elgar, Leader Instruments, Hioki, Extech, Meterman, Instek, BK Precision, Willtek Communications, and Associated Research.
* Sales of new and reconditioned test equipment
* Leasing of test equipment and general leasing
* Calibration and repair of test equipment
* Acquisition of surplus test equipment (trade-in)
* Avenues for Veteran Owned and Minority Owned Business
Signal Test is an authorized distributor for ELGAR. Signal Test is offering this new Elgar CW2501M AC power supply. Original Elgar box. Includes one year factory warranty.
Pricing considerations: You are saving more than $356.00 dollars from the list price. Purchase it now!
AC Power Supply Programmable 2500 VA
* Advanced Measurement Available
* Field Parallel Configurable
* Multiple Units Configurable for Poly-Phase Operation
The ContinousWave (CW) is designed for testing single or polyphase electronics.
The CW is well suited for applications requiring a cost-effective low profile AC source.
* Testing for real world sine wave power conditions
* 400 Hz testing for avionics equipment
* Power supply testing for AC to DC converters
Programmable CW Features And Benefits
Front panel encoder knobs allow programming of voltage, current and frequency settings. Programmed or measured values can be viewed on the two LED displays through push button selection. Menu push buttons enable setting system configuration including parallel or three phase operation. This menu also allows setting current shutdown or foldback modes. Remote IEEE-488.2 and RS-232 control interfaces are standard. LEDs indicate: high or low range output voltage, measure or program mode, voltage or current mode operation
and output-on. LED s indicate menu/status, remote control, lockout and fault conditions. Digital Signal Processing (DSP) based measurements include voltage, current (amperes, peak amperes, crest factor), power (watts, VA and power factor) and frequency.
Output: Voltage and Current Ranges
0 to 135Vrms, 0 to 270Vrms, user selectable
0.1% of Range <100Hz 0.2% of Range > 100Hz
0.25% typical <100Hz add 0.5%/100Hz above 100Hz
0.1% of full scale voltage for a full resistive load to no load (<10 mVRMS typical, measured at point of sense)
0.1% of full scale voltage for a 10% line change from nominal line voltage (<5 mVRMS typical, measured at point of sense)
5 Vrms total lead voltage drop
All models single phase output. Multi-phase system configuration with Digital Expansion Cable
0.1% of range <100 Hz, 0.2%
0.3% of range>500 Hz (option)
0.5% of range for linear loads
45 to 500 Hz, 45-1 000 Hz (option)
Positive indicates time lag from reference
Within 100 microseconds of equivalent angle
>0.99 typical at full load nominal line
Displays & indicators menu/status Enter/escape buttons are present for programming
Voltage mode (volts, watts, VA, PF) Green LED
Measure (amps, Hz, Pk amps, CF) Green LED
Program (amps, Hz I Limit) Green LED
Voltage range high/low Green LED
CE mark, UL and CUL (consult factory for availability)
Dual fan speed with side air intake, exhaust to
0 to 85% at 25 C derate to 50% at 40 C (non condensing)
Operating full power available up to 6,000 feet, non operating to 40,000 feet
