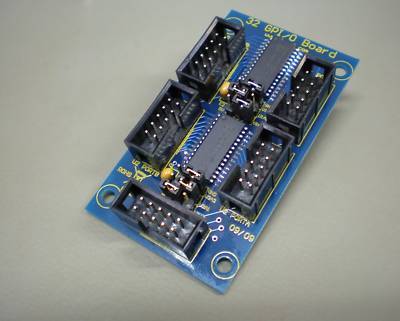

Elexol - i/o 24 32 port gpio expander board
The GPI/O 32 Board is an accessory board that allows up to 32 I/O pins to be controlled through a single Port connection on Elexol s I/O 24 Range. The Elexol I/O 24 Range
consists of Ether I/O 24 R, Ether I/O 24 DIP R, USB I/O 24 R and the USB I/O 24 DIP R.
The GPI/O 32 Board incorporates 2 x MCP23S17 GPIO expanders, which are split up into four 8 bit Ports (2 Ports per MCP23S17). This allows up to 32 I/O pins to be
controlled via the Elexol I/O 24 SPI Protocol.
Or any other use where an analog input or output is required
2 x MCP23S17 GPIO expander IC s
4 x I/O ports matching configuration of I/O 24 Port.
Hardware addressable pins for each SPI device
72mm Standard width for DIN Rail Modules
Compact measurements 40 x 72 x 11mm ( DIN Rail mountable with adaptor).
Provides the existing I/O 24 Range with more Port Interfaces
Easy software implementation through Elexol I/O 24 SPI Protocol
