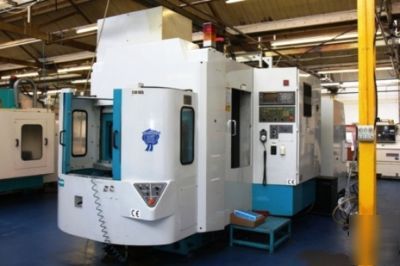

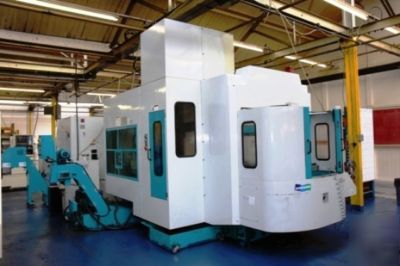

Doosan HM45H 3-axis horizontal machining center
#1442 DOOSAN HM45 CNC 3-AXIS HORIZONTAL MACHINING CENTER
X-Axis Travel 23.62"
Y-Axis Travel 22.04"
Z-Axis Travel 22.04"
Number of Pallets 2
Pallet Size 17.71" x 17.71"
Pallet Weight Capacity 1100 Lbs.
Pallet Indexing 1 Degree
Pallet Top to Spindle Centerline 2.36"-24.40"
Pallet Centerline to Spindle Housing 4.92"-29.90"
Max. Work Size L/W/H 25"/25"/25.5"
Spindle Speeds 0-12,000 RPM
Spindle Taper BT-40
Spindle Drive Motor 30 HP / 25 HP
Rapid Traverse 1574 IPM
Cutting Feed & Jog Feed 0.03"-590 IPM
Tool-To-Tool Time 1.6 Seconds
Chip-To-Chip Time 4 Seconds
Max. Tool Dia., Pockets Empty/Full 3.93"/4.92"
Max. Tool Length 11.81"
Max. Tool Weight 13.2 Lbs.
Dimensions L/W/H 180"/139"/125"
Approx. Weight 19,800 Lbs.

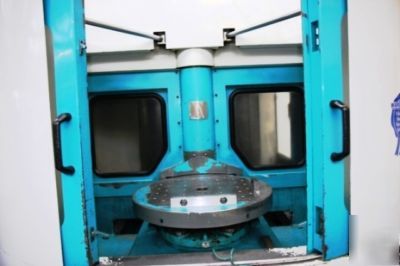

17.71" x 17.71" Pallets with Rotary Pallet Changer
40-Station Automatic Tool Changer

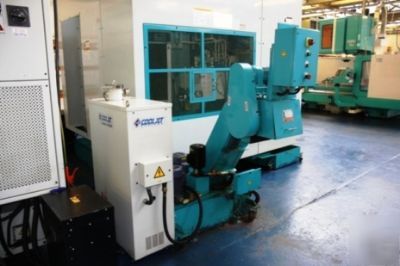

Cooljet 30-20SF 60 PSI Through-Spindle Coolant
