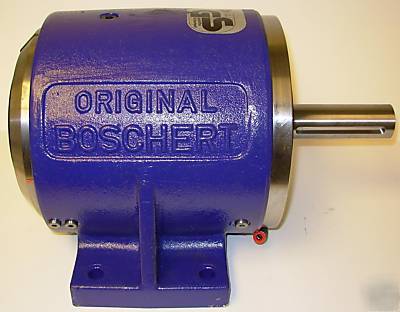

Boschert foot mounted pneumatic safety chuck P50STW
Boschert P Series Fott Mounted Pneumatic Safety Chuck
Normal Operating Pressure: 75psi
* Opens and closes pneumatically.
* Cannot open while running.
* Fails safe in whatever position it is in at loss of air supply.
* When open the top element is locked in the housing, providing a stable immovable element on which to load your roll shaft. It does not rock back and forth like a mechanical Safety Chuck.
* Because the bottom element does not rock back and forth it is easier to automatically load the Safety Chucks.
* The replaceable insert is a square on 45 degrees, or diamond shape. This design is much easier to load and unload. Easy loading and unloading make this Safety Chuck better able to accommodate automatic loading and unloading. There is more forgiveness with this design for the roll shaft to find the seat and seat itself.
* Proximity Sensors Available
* Hundreds in service since 1989
* Remote opening and closing reduces the time a worker has to be in the operating area. This may be a benefit if there are solvents, heat, radiation, or sterile room conditions which prohibit a worker being in such an environment.
