> 3 outlet piston distributor cbb-3

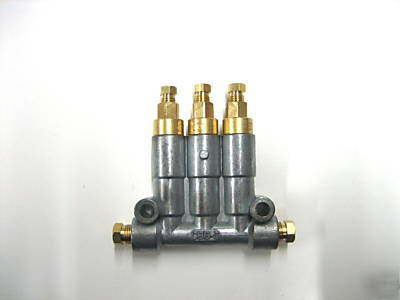

3 outlet piston distributor cbb-3
A piston distributor supplies a fixed flow of lubricant. The lowest operation pressure of CBB is 8 kgf/ Q , and the max pressure is 30 kgf/ Q . The viscosity range of oil is 32-90 cSt @ 40 J.
When ordering, please remember to specify flow value for each outlet.
Inlet thread is M10 x 1.0 pitch. Compression bushings and sleeves is included to connect 6mm hose.
Outlet thread is M8 x 1.0 pitch. Compression bushings and sleeves is included to connect 4mm hose.
Number of Outlets First Outlet Volume Second Outlet Volume Third Outlet Volume
1 : 1 Outlet 1 : 0.10cc 1 : 0.10cc 1 : 0.10cc
2 : 2 Outlets 2 : 0.20cc 2 : 0.20cc 2 : 0.20cc
3 : 3 Outlets 3 : 0.30cc 3 : 0.30cc 3 : 0.30cc
5 : 5 Outlets 4 : 0.40cc 4 : 0.40cc 4 : 0.40cc
5 : 0.50cc 5 : 0.50cc 5 : 0.50cc
For example, CBB-3-123 is a CBB-3 with the first outlet volume as 0.10cc, the second outlet volume as 0.20cc, and the third outlet volume as 0.30cc.
