20" x 24" okamoto hydraulic surface grinder '97

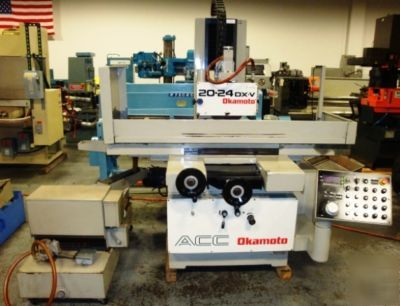

Preowned 20" x 24" OKAMOTO Hydraulic Surface Grinder, Model: ACC-2024DXV, S/N 67088 (New 1997)
Maximum distance from underside of 12" diameter
grinding wheel to top of table
Maximum weight of workpiece on table
Hydraulic intermittent cross feed
Automatic downfeed traverse and plunge cut
Graduation of crossfeed handwheel
Graduation of vertical handwheel
12" diameter x 5" bore x 1.5" width
Hydraulically actuated longitudinal and cross feeds
Double vee way table construction
Servo driven automatic incremental down feed of grinding wheelhead in programmable
coarse and fine increments from 0.00005" to 0.0015" in both the plunge and surface
grinding modes of operation
Automatic cycle with sparkout timer from 0 to 5 passes
Electronic handwheel for manual vertical movement with each graduation equivalent to
DXV option: automatic grinding wheel dresser, automatic dress compensation,
Digital display of vertical axis position
Motorized power rapid traverse to grinding wheelhead
19-5/8" x 23-5/8" KANETSU electromagnetic chuck with variable hold control
External coolant pump and tank with paper band filtration
3 H.P. 3/60/220 volt hyraulic pump motor
5 H.P. 3/60/220 volt spindle drive motor and electrical controls
