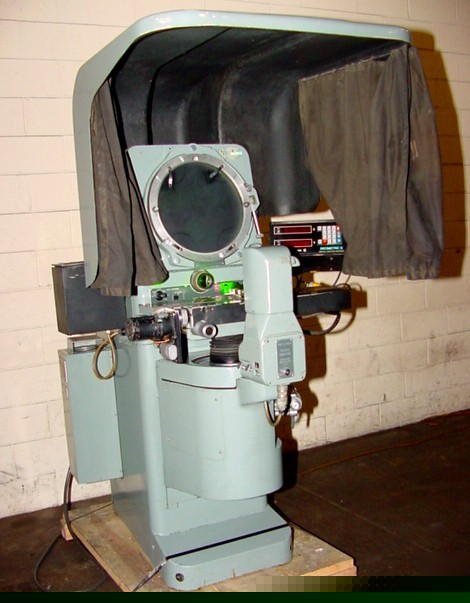

14" Screen Jones & Lamson FC-14 OPTICAL COMPARATOR, 2X DRO, REFLECTION, POWER TABLE
14" JONES & LAMSON (MADE IN USA)
OPTICAL COMPARATOR & MEASURING MACHINE
MODEL: FC-14 S/N: E-56229 NEW: 1981
SCREEN DIAMETER ................................... 14"
TABLE SIZE ................................... 6" X 30"
MEASURING CAPACITY (TABLE TRAVEL):
LONGITUDINAL ..................................... 8"
VERTICAL ......................................... 5"
ANGULAR MEASURING CAPACITY .... 360 DEG. CHART ROTATION
CROSS TRAVEL FOR FOCUSING ...................... 1.375"
HELIX ADJ. - TABLE SWIVELS, LEFT OR RIGHT ..... 15 DEG.
ELECTRICAL .............................. 1/60/118 VOLT
FLOOR SPACE ................... 33"L-R X 56"F-B X 78"HIGH
APPROXIMATE WEIGHT .......................... 1,300 LBS
MERCURY ARC NOVALITE HIGH INTENSITY LIGHTING
ERECT IMAGES & FIXED FOCAL PLANE @ ALL MAGNIFICATIONS
J & L "DECIMETRIC" 2-AXIS DIGITAL READOUT DISPLAY
4 LENSES, 10X, 20X, 50X & 100X
*** EXCELLENT CONDITION & APPEARANCE ***
