Magnum microwave active mixer 2-18 ghz rf, 10-300MHZ if

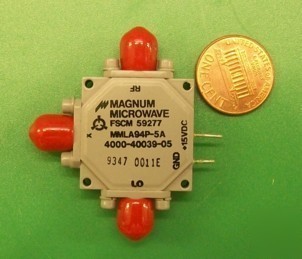

Magnum Microwave broadband 2-18GHz frequency mixer with an integrated limiting amplifier.
Model MMLA94P-5A, rugged hermetically sealed housing.
Mixer was tested and is in like new condition, please see parameters summary and graphs.
The mixer basically behaves as an active mixer for a wide dynamic range of input RF signals.
However, at the higher RF input powers the output IF amplifier saturates at +19dBm.
Conversion gain is about +15dB.
IF amplifier output saturation = +19dBm = 2.8V amplitude = 5.6Vpp.
Mixer cannot be used for upconversion, only for downconversion.
frequency mixer broadband, MMLA94P, magnum microwave, limiting amplifier, integrated limiting amp, spectrum microwave, hermetically sealed, miteq
