Lot 7 dpdt c&k 7208 momentary paddle switch on - (on)
Only SEVEN lots of SEVEN remaining!

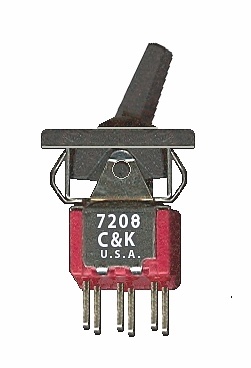

Offered here are lots of seven C&K (now ITT Canon) miniature size paddle switches.
These have a momentary on-(on) operation with a flat bladed black paddle and
a flat black rectangular bezel. While intended for thru-hole pc board mounting, they also
can be snapped into a half inch rectangular panel mount hole and direct wire.
This is a two position DPDT switch that is sustained on one side and momentary spring
action on the other. on-(on) operation.
Basic switch body is red C&K 7208. Six pins on 0.2 inch centers.
Contacts rated 5 amps at 120 vac, 2 amps at 220 vac. Bezel is 5/8 x 1 inch. Paddle
You can click here for the 7208 series switch data.
Guaranteed usable. Received by us in apparently "as new"condition as individually bagged
distributor stock.May include minor storage cosmetics.
