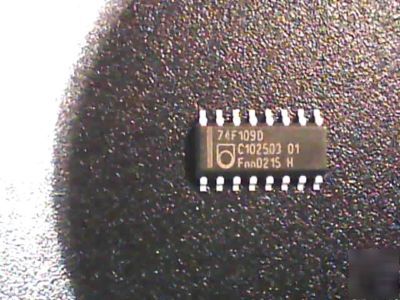

> J-k positive edge-triggered flip-flops N74F109D 25 pcs.
J-k positive edge-triggered flip-flops N74F109D 25 pcs.
J-K positive edge-triggered flip-flops N74F109D 25 Pcs.
http:// /datasheet-pdf/pdf/15354/PHILIPS/N74F109D.html
SO16: plastic small outline package; 16 leads; body width 3.9 mm SOT109-1
The 74F109 is a dual positive edge-triggered JK-type flip-flop
featuring individual J, K, clock, set, and reset inputs; also true and
complementary outputs. Set (SD) and reset (RD) are asynchronous
active low inputs and operate independently of the clock (CP) input.
The J and K are edge-triggered inputs which control the state
changes of the flip-flops as described in the function table. Clock
triggering occurs at a voltage level and is not directly related to the
transition time of the positive-going pulse. The J and K inputs must
be stable just one setup time prior to the low-to-high transition of the
clock for predictable operation. The JK design allows operation as a
D flip-flop by tying J and K inputs together. Although the clock input
is level sensitive, the positive transition of the clock pulse between
the 0.8V and 2.0V levels should be equal to or less than the clock to
output delay time for reliable operation.
