Cat 40 3/16 x 1.38 v-flange CAT40 end mill holder .0002

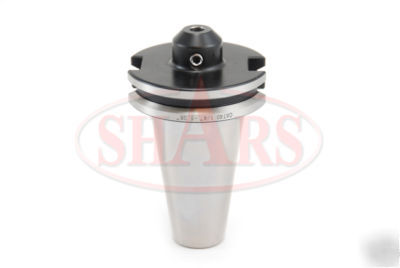

CAT 40 3/16" 1.38" V-FLANGE CAT40 END MILL HOLDER .0002" NEW
Solid end mill holders are ideal choice for heavy duty milling or roughing applications, such as the high speed roughing of steels. They provide better holding rigidness than ER collet chucks, are easily balanced, and are available in very short lengths for maximum spindle rigidity.
* Made from alloy steel harden to 54-60 HRc
* Taper ground to AT3 or better accuracy standard for maximum contact with spindle.
* All critical surface are precision ground
* Concentricity is less than 0.0002" from taper to end mill pocket
* Each holder comes with a lab certificate on its taper accuracy and runout measurement
* Narrow nose provides better clearance in tight space
SHARS 6" SV690 Milling Vise +/-0.0004 $265
* 6" wide jaw plate, 8.95" inner jaw opening, 17" outer jaw opening
* Made from 80,000PSI stress relief cast iron
* Vise bed hardened to 45 HRc and jaw plate hardened to 54 HRc
* Bed height Tolerance 2.875" +/-0.0005"
* Clamping repeatability +/-0.0004"
* To learn more, click here to 202-0994
SHARS 6" SPV615 Milling Vise +/-0.0004 $375
* 6" wide jaw plate, 6.25" inner jaw opening, 15" outer jaw opening
* Single piece of stationary jaw and vise body to enhance clamping rigidness and accuracy
* Bed height Tolerance 3.189" +/-0.0005"
* To learn more, click here to 202-0995
SHARS 6" SDV620 Double Station Milling Vise +/-0.0002 $720
* 4.9" jaw opening in double station, 12" jaw opening in single station (conversion kit included)
* Unique leadscrew design to allow to clamp either same sized or dissimilar sized parts
* Jaw lift prevention mechanism by eccentric pin design
* Bed height Tolerance 3.25" +/-0.0005" (matched bed height at no additional cost)
* Clamping repeatability +/-0.0002"
* To learn more, click here to 202-0999
CAT40 Pull Stud for various machine builders (Haas, Fadal, Mazak, Hurco, Mori Seiki,Okuma, etc)
Non-coolant pull stud Haas Fadal Mazak $5.75
* Made from alloy steel 5155 with heat treat to RC 56-58
* Each retention knob is individually magnetic particle tested to ensure free of crack
* High quality black oxide finish to ensure long enduring tool life
* Fully ground on all critical surface including a pilot (dia. 0.636") under the flange of retention knob for full contact between tool holder's taper end and retention knob
* Tolerance exceeds industry standards
Cross Reference table for Retention Knobs:
We also sell 1/32-1/2" Cat V-Flange Precision Ball Bearing Keyless Drill Chuck for $99.95
Also available is a CAT40 CNC Tool Tightening Fixture for $59.00
If you need to speak to a sales person feel free to call. We are open Monday through friday 8:30 to 5:00 est. Phone:1-(***)-443-3244
Illinois residents add 8% sales tax.
