> 250MW 405NM blue-violet laser diode module, glass lens
250MW 405NM blue-violet laser diode module, glass lens

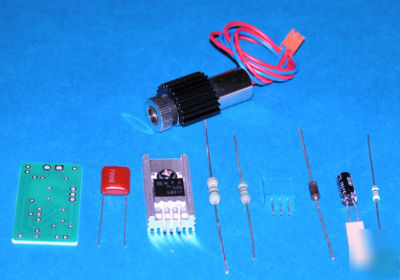

250mW 405nm Blue Violet Laser Diode Module with Adjustable Glass Lens, Tiny Heatsink for Laser module and 9 Component Driver DIY Kit with 405nm AR Coated Glass Lens
There are countless uses for a small compact Blue - Violet laser, such as HOLOGRAPHY, LASER LIGHT SHOWS, Medical, etc...
It can light cigarette, punch black vinyl and punch 2 white copy paper immediatelly.
Be carful, it can burn human skin immediately.
Laser diodes are rated for Class IIIb 250mW @400-410nm CW extract from never used Blu-Ray RW Pickup.
This diode died after 414mW@350mA 10mA step I-P-V test - room temperature with glass lens after install tiny heatsink.
This module include glass lens and tiny heatsink .
Max Output : With tiny heat sink (200mW @ 180mA, 250mW@ 230mA, 300mW@ 270mA, 350mW@ 300mA, 414mW@ 350mA)
I recommand less than 30 second duty for 200-300mW drive eventhough
it's work 40 minutes continuously with a tiny heatsink and 2:40 with 2 tiny heatsink at 250mW.
Or this module need more heatsink than a tiny heatsink for continuous work.
Recommand Output : 200mW@ 180mA(tiny heatsink)
Threshold Current : ~33mA(~3.6V)
Operation Voltage : ~5.0V @ 180mA
Module : 12mm diameter x 30mm length with 405nm AR coated glass lens
Lead wire 30cm(Red plus[+], Black minus[-]) with 2.5mm pitch Connector.
DIY Kit : 9 component, 320mA max limit
You Are over 18 and know the potential hazards inherent in high power laser equipment.
You WILL use this device in a safe and sane manner for a legal purpose
You Accept this item as a COMPONENT for integration in a system of YOUR OWN design and will hold the SELLER LEGALLY harmless from any and all LIABILITY
You know the electronic safety precautions necessary with this item and therefore accept it AS IT IS as an EXPERIMENTAL COMPONENT without warranty.
For order optional Driver, heat sink or glass lens, Please "request total" from paynow page before pay.
Optional adjustable output constant current PWM driver $30( 50x 35mm - Board can change without notice for improve) - exchange with DIY kit.
Drive : Switch mode constant current 122mA at ~5.5V (Click Photo to enlarge)
