> New 2 hp marathon jet pump motor K238 3 phase 3450 ul
New 2 hp marathon jet pump motor K238 3 phase 3450 ul

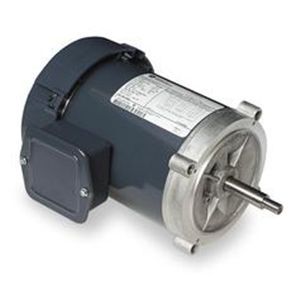

This is a high quality 3-Phase Face-Mount Jet Pump Motor made by Marathon.
This part sells for over $345.
* 3-Phase Face-Mount Jet Pump Motors
* Part Number 5K49SN2184 or K238
* UL Recognized and CSA Certified.
* Open dripproof models have a shaft slinger and gasketed conduit box to protect against moisture and contamination. Dayton motors will operate at 50 Hz on 190/380V at 5/6 of 60 Hz HP and RPM.
* Uses: Industrial, commercial, centrifugal, and hydraulic pumps.
* Insulation: Class B, except Class A on General Electric 5K33FN41A and General Electric 5K35JN47A
* Shaft: stainless steel, 7/16-20 UNF-2A RH threaded 11/16" from end, 2 7/16"L.
Pump Duty Motor, 3 Phase Totally Enclosed Fan Cooled, HP 2, RPM 3450, Voltage 200-230/460 V, NEMA Frame 56J, Service Factor 1.20, Frequency 60 Hz, Face Mounting, Bearings Double Shielded Ball, Thermal Protection None, Full Load Amps 5.8-5.4/2.7
ItemPump Duty Motor Motor Type3-Phase Phase3 EnclosureTotally Enclosed Fan-Cooled HP2 Nameplate RPM3450 Voltage200-230/460 NEMA/IEC Frame56J Service Factor1.20 Hz60/50 MountingFace BearingsDouble-Shielded Ball Thermal ProtectionNone Full Load Amps5.8-5.4/2.7 RotationCCWSE Ambient (C)40 Shaft TypeStainless Steel with 7/16-20 UNF-2A Right hand thread 11/16" from end Insulation ClassB RPM Range2350-3600 DutyPump Mfr. Stock No.K238 Weight36.00
