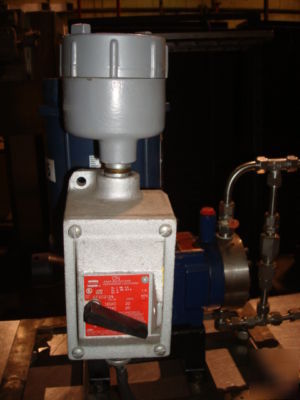

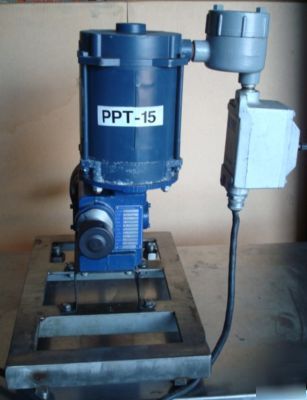

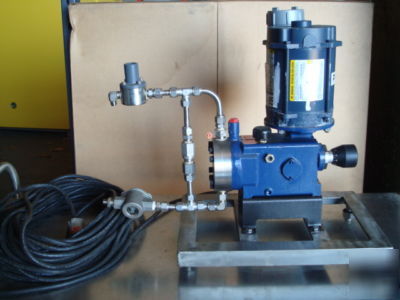

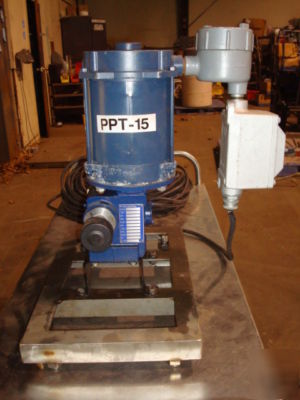

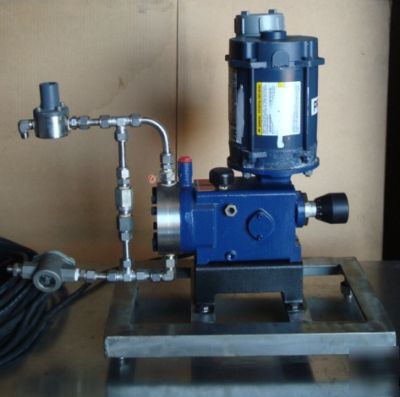

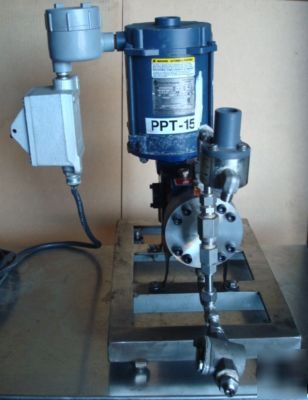

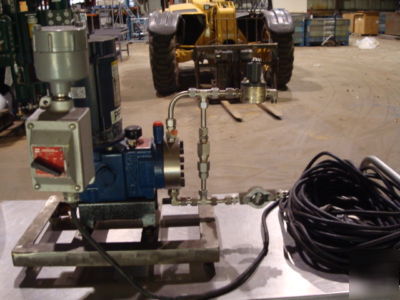

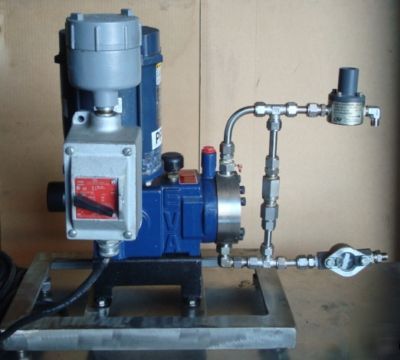

Metering pump, eva durameter-ex w/platform & cord: used

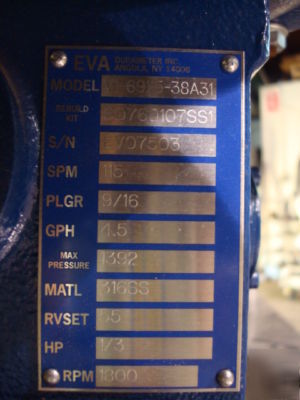

SPECIFICATIONS : Make: EVA Model No: V1-69115-38A31 Serial No: EVO7503 RPM: 1800 SPM: 115
PLGR: 9/16 GPH: 4.5 Max Pressure: 1392 RVSet: 55 HP: 1/3
Material of Const: 316L ss TOTAL WEIGHT OF UNIT: 100 lbs.
The newest addition to the EV Series, EVA metering pumps offer a cost-effective and long-term alternative to disposable solenoid pumps. With four independent, interchangeable cartridges, EVA brings all of the advantages of EV Series pumps into a pump with a small, space-saving footprint.
* Flow range: .08 gph (.30 l/h) to 30 gph (114 l/h)
* Pressure range: to 3500 psig (241 bar)
Non-metallic to 150 F (66 C)
* Steady state: 0.5% of flow setting
* Linearity: 1% of full flow
* Repeatability: 2% of full flow
* Turn down ratio: 10:1 (optional 100:1)
* Footprint: 3-5/8" x 7-1/16" (9 x 18 cm)
* DURAmatic electronic actuation
* Three levels of DURAlert leak detection:
2. Pressure switch leak detection
3. Optic sensor leak detection
* A two-part epoxy-coated, cast iron drivecase covers the entire hydraulic range.
* Accepts NEMA 56C frame motors to eliminate alignment problems. IEC motor frames are also available.
* Heavy-duty construction delivers strength and durability beyond anything found in its class.
* Reciprocating plunger design features a 3/4" (19mm) stroke length and six interchangeable plunger sizes.
* Field replaceable, three-part plunger seal.
* Internal oil filter eliminates any contaminants from entering the pump's hydraulic system.
* Externally adjustable hydraulic relief valve located at the high point of the hydraulic system incorporates an integral air bleed valve in a relief valve poppet to accurately vent air from the pressurized hydraulic system.
* Mechanical refill valve provides excellent suction lift capability. Pumps high vapor liquids without modification to existing systems.
* Hydraulically balanced single diaphragm design, without process side contour plate, permits use in almost any service condition.
* Pumping action is developed by positive sealing ball check valves.
* Optional check valve arrangements (double ball, soft or hardened seats) for special applications.
* Check valve assembly may be rebuilt for economical maintenance.
* Standard wet end materials include 316SS, Alloy 20, Hastelloy , PVC and Kynar . Most machineable metallic and non-metallic materials are available.
* Fully adjustable from 0% to 100% of stroke length.
* Micrometer stroke setting readout in 1% increments.
* Easily converted to DURAmatic electronic actuation.
* Fully sealed to prevent atmospheric contamination or oil leakage.
